JH329A Overview
HPE 1420 8G Switch JH329A
Overview
HPE OfficeConnect 1420 8G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, 1U
HPE OfficeConnect 1420 Series switches are Gigabit unmanaged Layer 2 switches for plug and play connectivity, in a metal enclosure. This JH329A has 8 x 10/100/1000 rear-facing ports with its LED display on the front. It is a desktop configuration. Part of the OfficeConnect portfolio of small business networking products from Hewlett Packard Enterprise.
Quick Spec

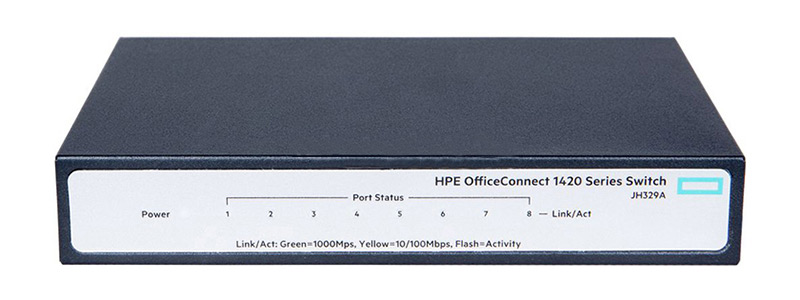

Figure 1 shows the appearance of HPE JH329A.
Product Code | JH329A |
Type | HPE Officeconnect 1420 8G Switch |
I/O ports and slots | · 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) · Media type: Auto-MDIX · Duplex: 10BASE-T/100BASE-TX: half or full · 1000BASE-T: full only supports a maximum of 8 autosensing 10/100/1000 port |
Throughput | up to 11.8 Mp/s |
Switching capacity | 16 Gb/s |
Dimensions | 2.69 x 15.77 x 10.49 cm ( 1.06 x 6.21 x 4.13 in) |
Weight | 0.5 kg ( 1.10 lb) |
Product Details

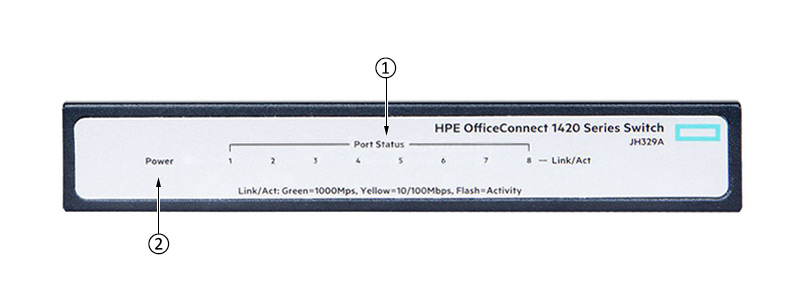

Figure 2 shows the front panel of HPE JH329A.
Note:
① | Power LED |
② | Copper port LEDs |
Figure 3 shows the back panel of HPE JH329A.
Note:
① | Security slot |
② | 8 × 10/100/1000BASE-T copper ports |
③ | DC power receptacle |
Compare to Similar Items
Product Code | JH329A | JH330A |
Type | HPE Officeconnect 1420 8G Switch | HPE Officeconnect1420 8G POE+ (64W) Switch |
Throughput | up to 11.8 Mp/s | up to 11.8 Mp/s |
Switching capacity | 16 Gb/s | 16 Gb/s |
PoE Power | N/A | 64W |
Comparison Download
OfficeConnect 1420 8G Switch
- Unmanaged L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 4096 entries Switching capacity: 16 Gbit/s
- 1U Stackable
Summary Description
HPE OfficeConnect 1420 8G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, 1U
Need help with JH329A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JH329A Specification
JH329A Specifications | |
Type | HPE Officeconnect 1420 8G Switch |
I/O ports and slots | · 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) · Media type: Auto-MDIX · Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only supports a maximum of 8 autosensing 10/100/1000 port |
Memory and processor | Packet buffer size: 1.5Mb |
Mounting and enclosure | Desktop (rear port) |
100Mb latency | < 3 μs |
1000Mb latency | < 2.6 μs |
10 Gb/s Latency | N/A |
Throughput | up to 11.8 Mp/s |
Switching capacity | 16 Gb/s |
MAC address table size | 4096 entries |
Reliability: MTBF (years) | N/A |
Dimensions | 2.69 x 15.77 x 10.49 cm ( 1.06 x 6.21 x 4.13 in) |
Weight | 0.5 kg ( 1.10 lb) |
Frequency | 50/60 Hz |
Maximum heat dissipation | N/A |
Voltage | 100 - 240 V ac (rated) |
Current | N/A |
Maximum power rating | 4.5 W4 |
PoE power | N/A |
Operating temperature | 0°C to 40°C(32°F to 104°F) |
Operating relative humidity | 5% to 95%, non condensing |
Non operating/Storage temperature | -40°C to 70°C(-40°F to 158°F) |
Non operating/Storage relative humidity | 5% to 95%, non condensing |
Altitude | N/A |
Acoustic | Fanless |
Safety | EN 60950/IEC 60950 UL 60950 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1-03 |
Emissions | FCC Rules Part 15, Subpart B Class A |
Generic | EN 55022 CISPR 22 |
EN | EN 55024, CISPR 24 |
ESD | IEC 61000-4-2 |
Radiated | IEC 61000-4-3 |
EFT/Burst | IEC 61000-4-4 |
Surge | IEC 61000-4-5 |
Conducted | IEC 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | IEC 61000-4-11 |
Harmonics | IEC 61000-3-2 |
Flicker | IEC 61000-3-3 |
