| Name: |
JG540A - Aruba 1900 Switch |
|
| Mfr. Part #: |
JG540A
|
|
| Condition: | Refurbished | |
| Availability: | In Stock | |
| Brand: | HPE | |
| Price: | $158.70 | |
JG540A
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
JG540A Overview
Aruba 1910-48 Switch JG540A
Overview
HPE 1910-48, Managed, L3, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
HPE OfficeConnect 1910 Series switches are Fast Ethernet web managed "smart" switches supporting Layer 3 static routing, Access Control Lists, 802.1X network login HP Networking's most advanced Fast Ethernet smart switch offering. This JG540A has 48 x 10/100 ports, 2x 10/100/1000 ports, and two non combo Gigabit SFP ports for fiber connectivity. Notable additional features include three levels of Spanning Tree Protocol STP, RSTP, MSTP IPv4/IPv6 management and routing, STP root guard, and ARP and DOS attack protection. Part of the OfficeConnect portfolio of small business networking products from Hewlett Packard Enterprise.
Quick Spec
Figure 1 shows the appearance of HPE JG540A.
Product Code | JG540A |
Type | HPE OfficeConnect 1910 48 Switch |
Ports |
Duplex: half or full 2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
|
Throughput | up to 13.1 Mp/s (64-byte packets) |
Routing/switching capacity | 17.6 Gb/s |
Dimensions (H x W x D) | 4.4 x 44 x 17.3 cm (1.73 x 17.32 x 6.81 in) |
Weight | 2.3 kg (5.07 lb) |
Product Details

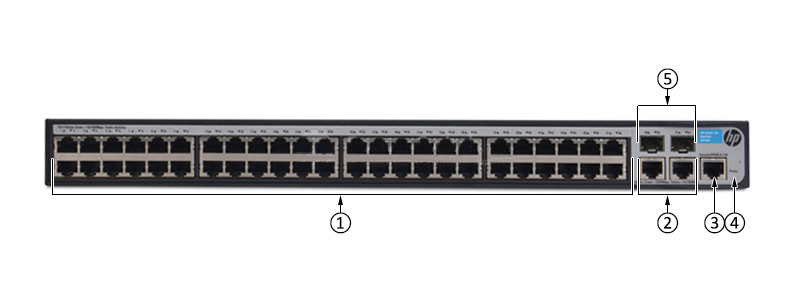

Figure 2 shows the front panel of HPE JG540A.
Note:
① | 10/100Base-T auto-sensing Ethernet port |
② | 100/1000Base-T auto-sensing Ethernet port |
③ | Console port |
④ | Power LED (Power) |
⑤ | 1000Base-X SFP port |

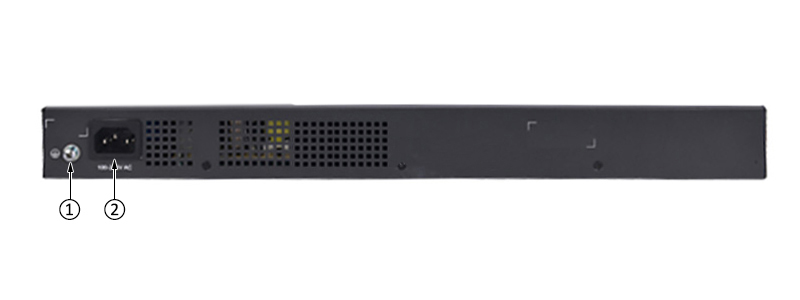

Figure 3 shows the back panel of HPE JG540A.
Note:
① | Grounding screw |
② | AC power connector |
Compare to Similar Items
Product Code | JG536A | JG537A | JG538A | JG539A | JG540A |
Type | HPE OfficeConnect 1910 8 Switch | HPE OfficeConnect 1910 8 PoE+ Switch | HPE OfficeConnect 1910 24 Switch | HPE OfficeConnect 1910 24 PoE+ Switch | HPE OfficeConnect 1910 48 Switch |
PoE Supported | No | 62 W PoE+ | No | 180 W PoE+ | No |
Throughput | up to 4.2 Mp/s (64-byte packets) | up to 4.2 Mp/s (64-byte packets) | up to 6.6 Mp/s (64-byte packets) | up to 6.6 Mp/s (64-byte packets) | up to 13.1 Mp/s (64-byte packets) |
Routing/Switching capacity | 5.6 Gb/s | 5.6 Gb/s | 8.8 Gb/s | 8.8 Gb/s | 17.6 Gb/s |
Fast Ethernet, RJ-45, 2299g, Black
- Managed L3 Web-based management SNMP v1, v2c, v3, MIB II, RMON 1, 2, 3, 9, DHCP, CLI
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 8192 entries
- 1U Rack mounting
- Power supply included
Summary Description
HPE 1910-48, Managed, L3, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
Need help with JG540A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JG540A Specification
JG540A Specifications | |
Type | HPE OfficeConnect 1910 48 Switch |
Ports |
Duplex: half or full 2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
|
Memory and processor Module | MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 1.5 MB |
Management | IMC - Intelligent Management Center limited command-line interface Web browser SNMP Manager IEEE 802.3 Ethernet MIB |
Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) |
100Mb Latency | < 5 μs |
1000Mb Latency | < 5 μs |
Throughput | up to 13.1 Mp/s (64-byte packets) |
Routing/Switching capacity | 17.6 Gb/s |
Routing table size | 32 entries (IPv4) 32 entries (IPv6) |
MAC address table size | 8192 entries |
Dimensions (H x W x D) | 4.4 x 44 x 17.3 cm (1.73 x 17.32 x 6.81 in) |
Weight | 2.3 kg (5.07 lb) |
Voltage | 100-240 V ac |
Frequency | 50/60 Hz |
Maximum power rating | 22 W |
Operating temperature | 0° to 40°C (32° to 104°F) |
Operating relative humidity | 10% to 90%, non-condensing |
Non-operating/Storage temperature | -40° to 70°C (-40° to 158°F) |
Non-operating/Storage relative humidity | 10% to 95%, noncondensing |
Safety | IEC 60950-1 EN 60950-1 UL 60950-1 2nd Edition CSA C22.2 No. 60950-1-07 2nd Edition |
Emissions | FCC part 15 Class A VCCI Class A EN 55022 Class A CISPR 22 Class A EN 55024 EN 61000-3-2 2000 61000-3-3 ICES-003 Class A |
Device management | RFC 2819 RMON |
General protocols | IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s (MSTP) IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3i 10BASE-T IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X |
MIBs | RFC 1213 MIB II RFC 1493 Bridge MIB RFC 2021 RMONv2 MIB RFC 2233 Interface MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Notification MIB RFC 2573 SNMP-Target MIB RFC 2613 SMON MIB RFC 2618 RADIUS Client MIB RFC 2620 RADIUS Accounting MIB RFC 2665 Ethernet-Like-MIB RFC 2667 IP Tunnel MIB RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2737 Entity MIB (Version 2) RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 3418 MIB for SNMPv3 |
Network management | IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1D (STP) |
QoS/CoS | IEEE 802.1P (CoS) |
Security | IEEE 802.1X Port Based Network Access Control |
