Name: JG310B - HP 5120 SI Switches
Brand: HPE
SKU: JG310B
Availability: InStock
Rating: 5 (1 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	JG310B - HP 5120 SI Switches
Mfr. Part #:	JG310B
Condition:	New
Authenticity:	Original Genuine OEM
Availability:	In Stock
Brand:	HPE

JG310B

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

overview

specifications

resources

reviews

overview

JG310B Overview

HPE 5120 8G PoE+ (65W) SI Switch JG310B

Overview

HPE 5120 8G PoE+ (65W) SI, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This JG310B has 8 x 10/100/1000 PoE+ ports and 1 x GbE SFP ports. Power over Ethernet support is for IEEE 802.3at with a PoE+ power budget of 65 Watts. They are campus switches ideal for medium and large enterprise networks.

Quick Spec

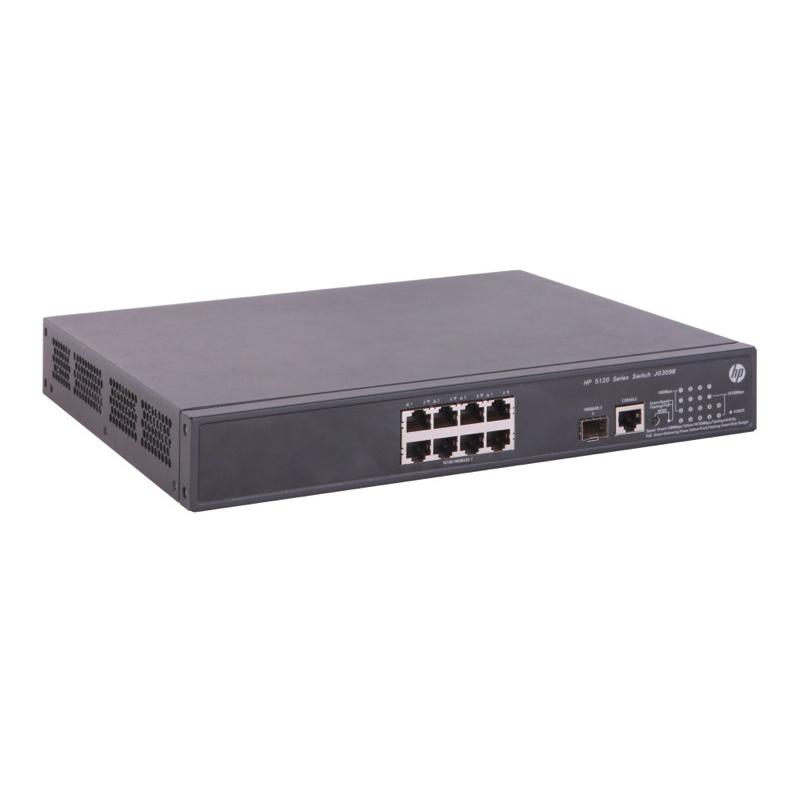

Figure 1 shows the appearance of HPE JG310B.

HPE-JG310B-Appearance

Product Code	JG310B
Type	HPE 5120 8G PoE+ (65W) SI Switch
I/O ports and slots	8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port
PoE power	65 W PoE+
Additional ports and slots	1 RJ-45 serial console port
Memory and processor	128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB
Performance	1000 Mb Latency < 3 µs Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries
Dimensions (H x W x D)	4.37 x 43.94 x 26.0 cm ( 1.72 x 10.24 x 17.3 in ) (1U height )
Weight	5 kg (11.02 lb)

Product Details

Figure 2 shows the front panel of HPE JG310B.

HPE-JG310B-Front-Panel

Note:

①	8 × 10/100/1000Base-T auto-sensing Ethernet port
②	1 × 1000Base-X SFP port
③	Console Port
④	Port LED mode switching button
⑤	Port mode LED, Port LED and Power LED (Power)

· There are AC-input power receptacle and Grounding screw on the back panel.

Compare to Similar Items

Product Code	JG091B	JG309B	JG310B
Type	HPE 5120 24G PoE+ (370W) SI Switch	HPE 5120 8G PoE+ (180W) SI Switch	HPE 5120 8G PoE+ (65W) SI Switch
I/O ports and slots	24 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 x fixed Gigabit Ethernet SFP ports	8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port	8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port
PoE power	720 W PoE+, optional	180 W PoE+	65 W PoE+
Performance	1000 Mb Latency < 3 μs Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries	1000 Mb Latency - < 3 µs Throughput up to 13.4 Mpps Routing/Switching capacity 18 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries	1000 Mb Latency < 3 µs Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries

5120 8G PoE+ (65W) SI Switch

Managed L2 Web-based management

Quality of Service (QoS) support

Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45

10BASE-T, 100BASE-TX, 1000BASE-T

MAC address table: 8192 entries Switching capacity: 18 Gbit/s

Access Control List (ACL)

1U Rack mounting Stackable

Power supply included Power over Ethernet (PoE)

Summary Description

HPE 5120 8G PoE+ (65W) SI, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Need help with JG310B?

Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com

specifications

Specification

JG310B Specification

JG310B Specification
Type	HPE 5120 8G PoE+ (65W) SI Switch
System specifications
I/O ports and slots	8 RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 SFP fixed Gigabit Ethernet SFP port
Additional ports and slots	1 RJ-45 serial console port
Memory and processor	128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB
Mounting and enclosure	Requires angle mounting set if rack mounted (not included)
Management	IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager
Performance	1000 Mb Latency < 3 µs Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries
Physical specifications
Dimensions (H x W x D)	4.37 x 43.94 x 26.0 cm ( 1.72 x 10.24 x 17.3 in ) (1U height )
Weight	5 kg (11.02 lb)
Electrical specifications
Maximum heat	204 BTU/hr (215.22 kJ/hr)
Voltage	100 - 240 V ac, rated (depending on power supply chosen)
Maximum power rating	59.8 W
Idle power	25.7 W
PoE power	65W
Frequency	50/60 Hz
Environmental specifications
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	10% to 90%, noncondensing
Nonoperating/Storage temperature	-40°C to 70°C (-40°F to 158°F)
Operating relative humidity	10% to 90%, noncondensing
Nonoperating/Storage temperature	-40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing
Acoustic	Pressure: 42.2 dB, Low-speed fan: 42.2 dB, High-speed fan: 50 dB; ISO 7779
Safety certifications
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
