FG-30E Overview
Fortinet FG-30E, 5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports), Max managed FortiAPs (Total / Tunnel) 2 / 2 FG-30E
Overview
FG-30E Overview
Fortinet FortiGate 30E, 0.95 Gbit/s, 150 Mbit/s, SSL/TLS, UDP, FortiOS, Wired
FG-30E is the Fortinet NGFW Entry-level Series FortiGate 30E firewall. The FortiGate 30E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.
Quick Spec
SKU | FG-30E |
Firewall | 950 Mbps |
IPS | 300 Mbps |
NGFW | 200 Mbps |
Threat Protection | 150 Mbps |
Interfaces | 5x GE RJ45 ports (Including 1x WAN port, 4x Switch ports) |
Product Details

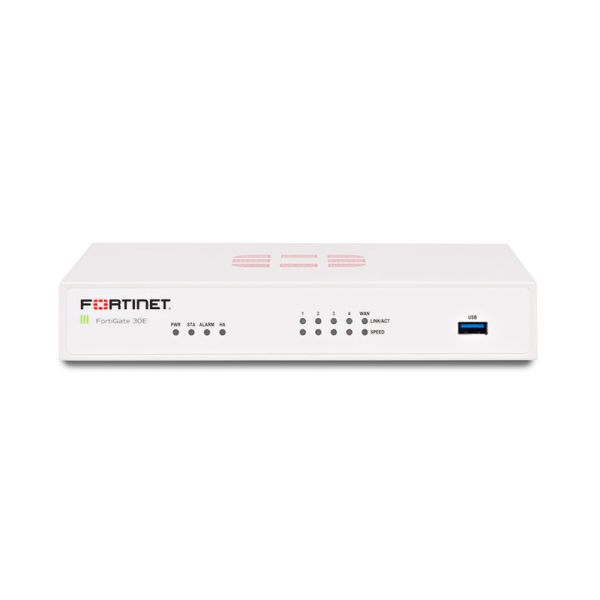

Figure 1 shows the front view of FG-30E.
Note:
① | USB Port |
Figure 2 shows the rear view of FG-30E.
Note:
① | Console RJ45 |
② | 1 GE RJ45 WAN Ports |
③ | 4x GE RJ45 Switch Ports |
Related Products
| Types | Model | Description |
| Basic Firewall | FG-30E | 5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports), Max managed FortiAPs (Total / Tunnel) 2 / 2 |
| 1 year bundle | FG-30E-BDL-950-12 | FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-30E & FC-10-0030E-950-02-12) |
| 1 year License | FC-10-0030E-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-30E |
| 3 year bundle | FG-30E-BDL-950-36 | FG-30E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-30E & FC-10-0030E-950-02-36) |
| 3 year License | FC-10-0030E-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-30E |
| 5 year bundle | FG-30E-BDL-950-60 | FG-30E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-30E & FC-10-0030E-950-02-60) |
| 5 year License | FC-10-0030E-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-30E |
Compare to Similar Item
Sku | FG-30E | FG-30E-BDL |
Firewall | 950 Mbps | 950 Mbps |
IPS | 300 Mbps | 300 Mbps |
NGFW | 200 Mbps | 200 Mbps |
Threat Protection | 150 Mbps | 150 Mbps |
Interfaces | 5x GE RJ45 ports (Including 1x WAN port, 4x Switch ports) | 5x GE RJ45 ports (Including 1x WAN port, 4x Switch ports) |
Bundle | N/A | Fortinet FG-30E Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle |
Summary Description
Fortinet FortiGate 30E, 0.95 Gbit/s, 150 Mbit/s, SSL/TLS, UDP, FortiOS, Wired
Need help with FG-30E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
FG-30E Specification
FG-30E Specification | |
Type | FORTIGATE 30E |
Hardware Specifications | |
GE RJ45 Switch Ports | 4 |
GE RJ45 WAN Ports | 1 |
USB Ports | 1 |
Console (RJ45) | 1 |
Wireless Interface | - |
System Performance and Capacity | |
Firewall Throughput | 950 Mbps |
Firewall Latency (64 byte UDP Packets) | 130 μs |
Firewall Throughput (Packet per Second) | 180 Kpps |
Concurrent Sessions (TCP) | 900,000 |
New Sessions/Second (TCP) | 15,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput (512 byte) | 75 Mbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput | 35 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 100 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 125 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 120 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 45,000 |
Application Control Throughput (HTTP 64K) | 400 Mbps |
CAPWAP Throughput (HTTP 64K) | 850 Mbps |
Virtual Domains (Default / Maximum) | 5 / 5 |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 2 / 2 |
Maximum Number of FortiTokens | 500 |
Maximum Number of Registered FortiClients | 200 |
High Availability Configurations | Active/Active, Active/Passive, Clustering |
System Performance | |
IPS Throughput | 300 Mbps |
NGFW Throughput | 200 Mbps |
Threat Protection Throughput | 150 Mbps |
Dimensions and Power | |
Height x Width x Length | 1.61 x 8.27 x 5.24 inches 41 x 210 x 133 mm |
Form Factor | Desktop |
Power Required | 100–240V AC, 60–50 Hz (External DC Power Adapter) |
Maximum Current | 100V / 0.6A, 240V / 0.4A |
Power Consumption (Average / Maximum) | 16 / 19 W |
Heat Dissipation | 66 BTU/h |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | Fan-less 0 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Frequently Asked Questions
What are the primary networking interfaces available on the Fortinet FG-30E? +
The FortiGate 30E is equipped with five Gigabit Ethernet RJ45 ports. This configuration includes one dedicated WAN port for internet connectivity and four switch ports, providing the flexibility to connect local devices directly to the appliance while maintaining a clear separation between your external network traffic and internal wired infrastructure.
Can the FortiGate 30E manage external wireless access points? +
Yes, this entry-level firewall supports the management of Fortinet wireless access points. Specifically, the FG-30E allows for a maximum of two managed FortiAPs in either total or tunnel mode, making it a suitable solution for small office environments that require integrated security and basic wireless management from a single, centralized console.
Is the FortiGate 30E suitable for small business security deployments? +
The FG-30E is specifically engineered for small office and branch office deployments. Its compact form factor and robust feature set provide essential next-generation firewall capabilities, such as threat protection and traffic segmentation, which are critical for securing small business networks without the overhead or complexity of higher-end, enterprise-grade hardware.
How does the FG-30E handle local network switching tasks? +
The device features four integrated switch ports, allowing it to function as a combined firewall and entry-level switch for your local area network. This reduces the need for additional hardware by enabling direct connections for workstations, printers, or VoIP phones while simultaneously applying security policies to the traffic flowing across those local ports.
Does the FortiGate 30E provide enough performance for basic branch office needs? +
Performance on the 30E is optimized for small-scale environments where security is a priority. While it operates on the same FortiOS platform as larger models, throughput is tailored to meet the typical traffic loads of small branch offices, ensuring that your security inspection tasks do not become a bottleneck for routine office internet activity.
What is the typical use case for the WAN port on the FG-30E? +
The dedicated WAN port is designed to connect your site to an upstream ISP modem or fiber ONT. By isolating the WAN interface from the internal switch ports, the FG-30E ensures that all inbound and outbound internet traffic is subject to the security policies, inspection, and NAT rules configured within the firewall's operating system.
How is the FG-30E managed and configured? +
Management is handled through the robust FortiOS platform, which offers a user-friendly web-based GUI for quick configuration and monitoring. Additionally, for network administrators who prefer automation or granular control, the device supports CLI access, allowing for scalable policy management and integration into existing enterprise administration workflows.
What makes the FortiGate 30E a reliable choice for persistent network security? +
The 30E leverages Fortinet’s proprietary security processor technology, which is designed for high reliability and consistent performance. By offloading security tasks from the main CPU, the appliance maintains a stable state during intensive traffic inspection, providing a consistent security posture that is essential for protecting small business assets against evolving cyber threats.
Why should I choose BuyRouterSwitch.com for my Fortinet firewall procurement? +
BuyRouterSwitch.com is a premier provider of authentic networking equipment. We specialize in streamlining the procurement process for IT buyers by ensuring that every unit supplied is genuine and sourced through verified channels. Our focus is on providing a seamless acquisition experience tailored to your organization's specific technical requirements.
How can I obtain a quote for a large volume order of FG-30E units? +
If you are planning a multi-site rollout and require a large volume of FG-30E firewalls, our sales team is ready to assist. Please contact us directly through the BuyRouterSwitch.com portal to discuss your deployment size. We provide personalized quotes for bulk orders to ensure you receive professional assistance for your enterprise infrastructure project.
