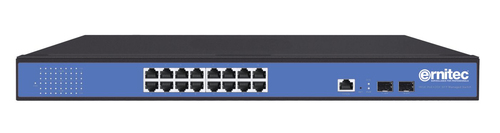

Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com
overview
specifications
resources
faqs
reviews
ELECTRA-M216/2 Overview
OVERVIEW FEATURES
L2 Management PoE Gigabit Ethernet Switch Provide flexible and high-cost performance full-gigabit access and uplink ports, support complete security protection mechanism, perfect ACL/QoS policies and flexible VLAN functions, easy to manage and maintain, and meet users’ needs for network equipment that is easy to manage, high security, low cost Cost networking requirements, is the preferred networking equipment for small and medium-sized enterprises.
Flexible VLAN Division
In the enterprise office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is necessary to divide the interior into different VLANs to isolate the broadcast domain and improve the stability of the network.
Advanced QoS features
To integrate voice, data and video service on one traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc. to ensure that voice and video are always clear, smooth and jitters free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.
Reliable protection
Support STP / RSTP / MSTP Spanning Tree Protocol to eliminate layer 2 loops and implement link backup. Support port aggregation to effectively increase link bandwidth, achieve load balancing, link backup and enhance link reliability.
Enterprise Level Management Features
Easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI), industry-standard Command Line Interface (CLI), SNMP (v1/v2c/v3), and RMON. This allows the switch to provide valuable status information and send reports on abnormal events.
Managed Layer 2 Switch, 16 Gigabit ports, 2 Gigabit SFP ports
- PoE
- long distance
- security network
- network
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
- 2.5GBASE-T, 100BASE-X, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 36 Gbit/s
- Access Control List (ACL)
- Rack mounting
- AC/PoE Power supply included Power over Ethernet (PoE)
Summary Description
Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Need help with ELECTRA-M216/2?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
ELECTRA-M216/2 Specifications
Overview
Manufacturer:
Ernitec
Stock:
In Stock.
Stock updated on:
2024-09-17
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Fiber ports quantity
2
Fiber optic connector
SFP
Console port
RJ-45
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
2.5GBASE-T, 100BASE-X, 1000BASE-T
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Data transmission
Switching capacity
36 Gbit/s
Forwarding rate
26.8 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Packet buffer memory
4 MB
Security
DHCP features
DHCP client, DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
MAC address filtering
Yes
Loop protection
Yes
IP-MAC-Port binding
Yes
Authentication
Port-based authentication
Password protection
Yes
Authentication type
AAA, IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms
SP, WFQ, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
Command Line Interface (CLI) through console port, telnet and SSH; Trap/Inform RMON (1, 2, 3, 9) groups; SNTP; Traceroute; Ping; BOOTP Client
IPv4 & IPv6 features
IPv6 SSH, IPv6 Path MTU Discovery, ICMPv6, IPv6 SNMP, IPv6 TFTP, Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert
Design
Rack mounting
Yes
Product colour
Black, Blue
LED indicators
Yes
Number of fans
2 fan(s)
Performance
Firmware upgradeable
Yes
Technical details
Warranty period
5 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
Power
Power source
AC/PoE
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
16
Power over Ethernet plus (PoE+) ports quantity
11
Power over Ethernet (PoE) power per port
21.8 W
Total Power over Ethernet (PoE) budget
350 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
440 mm
Depth
200 mm
Height
45 mm
Weight
800 g
Packaging data
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Package weight
1.2 kg
Sustainability
Sustainability compliance
Yes
Resources
Documents
Frequently Asked Questions
What are the primary port configurations available on the Ernitec ELECTRA-M216/2 switch? +
The ELECTRA-M216/2 features 16 dedicated Gigabit Ethernet ports for high-speed copper connectivity to endpoints. Additionally, it includes 2 dedicated Gigabit SFP slots, which provide the flexibility to establish long-distance fiber optic uplinks for high-bandwidth backbone connections, ensuring your network can scale effectively as traffic demands increase.
Is the Ernitec ELECTRA-M216/2 suitable for enterprise-grade managed network environments? +
Yes, this is a fully managed Layer 2 switch designed for professional deployments. It allows network administrators to implement advanced features like VLAN tagging, port mirroring, and traffic prioritization. This level of control is essential for managing complex network segments, improving overall security, and ensuring efficient data flow across the enterprise infrastructure.
Can I use the Ernitec ELECTRA-M216/2 to power my VoIP phones and IP cameras? +
The ELECTRA-M216/2 is categorized as a Power over Ethernet (PoE) switch, making it an ideal choice for powering peripheral devices directly through the network cable. This capability eliminates the need for individual power supplies at each endpoint, simplifying your cable management and significantly reducing installation time in both office environments and surveillance setups.
How does the Layer 2 switching functionality impact network traffic management? +
Layer 2 management allows the switch to operate primarily at the data link layer, utilizing MAC address tables to direct traffic efficiently to specific ports. By using features like IGMP snooping and link aggregation, this switch helps reduce broadcast traffic and prevents network congestion, ensuring that your critical applications receive the consistent bandwidth they require.
What type of mounting hardware is included for the ELECTRA-M216/2 rackmount switch? +
This unit is designed for standard 19-inch rack installations, making it perfect for server rooms or network closets. The chassis is built for durability and efficient heat dissipation. When deploying, ensure your rack has sufficient depth to accommodate the unit and proper airflow clearance to maintain optimal operating temperatures for sustained, reliable performance.
Does the Ernitec ELECTRA-M216/2 support link aggregation for redundant uplinks? +
Yes, this switch supports link aggregation, often referred to as LACP. This allows you to combine multiple physical ports into a single logical trunk. By doing so, you can increase the total throughput between switches and provide essential link redundancy, ensuring that your network remains operational even if a single cable or port connection fails.
How do I configure the management settings on this Ernitec switch? +
Management is typically handled through a web-based interface or a command-line interface, providing you with full visibility into port status and configuration parameters. Whether you are setting up VLANs, managing PoE budgets, or monitoring real-time traffic statistics, the intuitive management suite allows for precise control over your network environment from a centralized dashboard.
What makes the ELECTRA-M216/2 a reliable choice for long-term network deployments? +
Built with enterprise-grade components, this switch is designed for continuous operation in demanding environments. The managed architecture allows for proactive monitoring of network health, enabling administrators to detect potential issues before they impact productivity. Its robust chassis and efficient cooling design help extend the lifespan of the hardware, providing a stable foundation for your office connectivity.
