Mfr.part#:	EHWIC-4SHDSL-EA
Name:	EHWIC-4SHDSL-EA Cisco 1900 Series Option & Spare
Detail:	Cisco 1900 Series Option & Spare EHWIC-4SHDSL-EA EHWIC-4SHDSL-EA
Availability:	In Stock
Condition:	Refurbished
Price:	$201.98

EHWIC-4SHDSL-EA

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

EHWIC-4SHDSL-EA Overview

The single-port Cisco Multimode Four-Pair G.SHDSL Double Wide Enhanced High-Speed WAN Interface Card (EHWIC-4SHDSL-EA) offers G.SHDSL-based WAN connectivity using both 802.3ah Ethernet in the First Mile (EFM) and ATM modes on a single enhanced high-speed WAN interface card (EHWIC). Both modes are not supported simultaneously. This EHWIC will be used in modular routers that are deployed in small to medium-sized businesses (SMBs) and enterprise branch offices.

Quick Specs

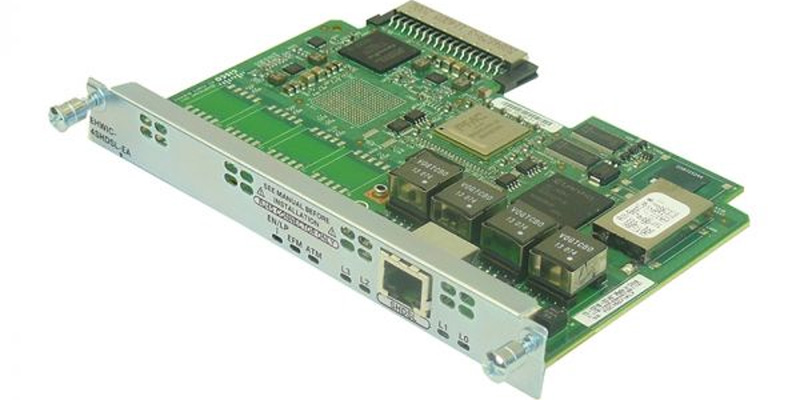

Figure 1 shows the appearance of EHWIC-4SHDSL-EA.

Cisco EHWIC-4SHDSL-EA Appearance

Table 1 shows the quick specs of EHWIC-4SHDSL-EA.

Part Number	EHWIC-4SHDSL-EA
Type	Cisco Multimode Four-Pair G.SHDSL EHWIC
Chipset	Socrates-4e from Lantiq
Dimensions (H x W x D)	6.25 x 5.63 x 1.75 in. (15.88 x 14,30 x 4.45 cm)
Firmware version	IDC Firmware version: V1.7.2.0 DFE Firmware version: V-1.1.7.10_2 10
Weight	3 Lbs
System Requirements	Cisco, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router

Router Platforms

Table 2 shows the router platforms which support EHWIC-4SHDSL-EA.

Model	Description
CISCO1921/K9	Cisco 1921 Modular Router, 2 GE, 2 EHWIC slots, 512DRAM, IP Base
CISCO1941/K9	Cisco 1941 Router w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base
CISCO2901/K9	Cisco 2901 router w/2 GE,4 EHWIC,2 DSP,256MB CF,512MB DRAM,IP Base
CISCO2911/K9	Cisco 2921 Router w/3 GE,4 EHWIC,3 DSP,1 SM,256MB CF,512MB DRAM,IPB
CISCO2921/K9	Cisco 2911 router w/3 GE,4 EHWIC,2 DSP,1 SM,256MB CF,512MB DRAM,IPB
CISCO2951/K9	Cisco 2951 Router w/3 GE,4 EHWIC,3 DSP,2 SM,256MB CF,512MB DRAM,IPB
CISCO3925/K9	Cisco 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB)
CISCO3945/K9	Cisco 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB)
CISCO3925E/K9	Cisco 3925E router w/SPE200,4GE,3EHWIC,3DSP,2SM,256MBCF,1GBDRAM,IPB
CISCO3945E/K9	Cisco 3945 router w/SPE250, 4GE, 3EHWIC, 3DSP, 4SM, 256MBCF, 1GB DRAM, IPB

Compare to Similar Item

Table 3 shows the comparison between EHWIC-4SHDSL-EA and EHWIC-1GE-SFP-CU.

Product part number	EHWIC-4SHDSL-EA	EHWIC-1GE-SFP-CU
Type	Cisco Multimode Four-Pair G.SHDSL EHWIC	Cisco Enhanced HWIC Interface Card
Ports	RJ-45 connector	1 dual mode SFP port 1 10/100/1000 Base-T port
System Requirements	Cisco, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router	Cisco, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router

Get more information

Do you have any question about the EHWIC-4SHDSL-EA?

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco EHWIC-4SHDSL-EA?

Our lowest price for EHWIC-4SHDSL-EA is $201.98 Buy Now

Explore even more affordable prices for Networking Accessories and Cisco products.

specifications

Specification

EHWIC-4SHDSL-EA Specification

EHWIC-4SHDSL-EA Specifications
Type	Cisco Multimode Four-Pair G.SHDSL EHWIC
Chipset	Socrates-4e from Lantiq
Dimensions (H x W x D)	6.25 x 5.63 x 1.75 in. (15.88 x 14,30 x 4.45 cm)
Firmware version	IDC Firmware version: V1.7.2.0 DFE Firmware version: V-1.1.7.10_2 10
Weight	3 Lbs
System Requirements	Cisco, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router
LEDs	EN/LP	Status of the system: Green: Operating system is running Amber: Indicates loopback mode
	EFM	Green: Indicates EFM mode
	ATM	Green: Indicates ATM mode
	L0, L1, L2, L3, L4, L5, L6, L7	Status of link: Green on: Link is active Off: Link is inactive or not configured Amber: Link alarm Blinking green: Link is training. Slow blinking indicates IMA link training Fast blinking indicates non-IMA link Is training Amber and green blinking Simultaneously: Loopback mode EN/LP is also amber
Ports	RJ-45 connector
Cable	RJ-45
Network Equipment Building Standards (NEBS) compliance	No
