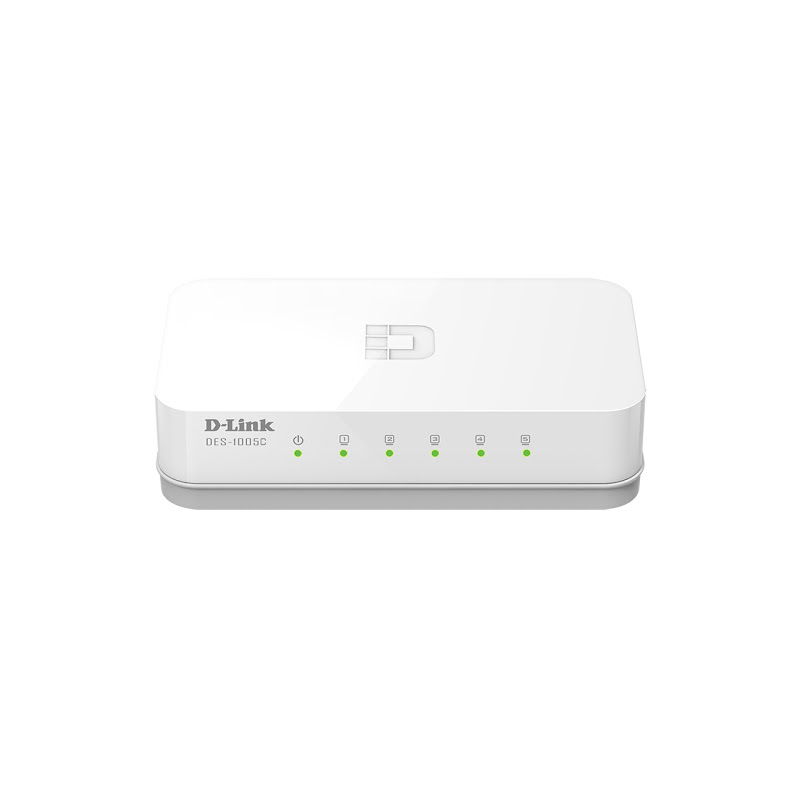

DES-1005C - D-Link 100M Unmanaged Switches
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
- Authenticity: Original Genuine OEM
DES-1005C
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
faqs
reviews
DES-1005C Overview
D-Link Ports: 5 100M electrical ports, backplane bandwidth: 1G, packet forwarding rate: 0.74M, size: 104x57x27mm (4 inches, plastic case), power supply: DC 5V/0.55A mini USB interface external power supply, non-network management switch DES-1005C
Overview
· 5 high-speed Fast Ethernet ports
· Innovative D-Link Green energy saving features
· Compact design for convenient placement
· Fanless design for silent operation
Need help with DES-1005C?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
DES-1005C Specification
DES-1005C Specification | |
| 100Base-TX Interface | 5 |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 1 Gbps |
| Max. Packet Forwarding Rate | 0.74 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 88x48x21.45mm |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 40 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
| Maximum Power Consumption | 0.784 W |
| Standby Power Consumption | 0.4 W |
| Maximum Heat Dissipation | 0.406 BTU/h |
| MTBF | 1,785,631 hours |
| Power Input | DC : 5V, 0.55A |
| Packet Buffer Size | 96K bytes |
| Fan | Fanless |
| Energy Efficient Etdernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| MAC Address Table Size | 2,000 |
| 802.3x Flow Control | Yes |
| Head-of-Line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 2048 bytes |
Frequently Asked Questions
What are the primary performance capabilities of the D-Link DES-1005C? +
The DES-1005C offers a reliable backplane bandwidth of 1G, supported by a packet forwarding rate of 0.74M. These specifications ensure smooth, low-latency traffic handling for standard home or small office networking environments, providing consistent connectivity across all five 100M electrical ports without dropping data packets during typical operational loads.
Does the D-Link DES-1005C require any configuration or software installation? +
This is a plug-and-play, non-network managed switch, meaning it requires no initial configuration or complex setup. Once connected to a power source and your network devices, the hardware automatically negotiates speeds and duplex modes, making it an ideal solution for users needing an immediate, maintenance-free networking expansion.
How compact is the physical design of the D-Link DES-1005C? +
Engineered for tight spaces, this device measures just 104x57x27mm. Its 4-inch, lightweight plastic form factor allows for flexible placement on desks, shelves, or inside cramped enclosures. Its small footprint ensures it integrates seamlessly into existing office environments without cluttering your workspace.
What is the specific power requirement for the D-Link DES-1005C? +
The unit operates on a power supply of DC 5V/0.55A. It utilizes a convenient mini USB interface for its external power supply, which simplifies cable management and provides a standardized connection method that is widely accessible for small-scale networking hardware.
In what deployment scenarios is the D-Link DES-1005C most effective? +
The DES-1005C is best suited for small office, home office (SOHO), or branch deployment scenarios that require a basic, cost-effective way to add wired connectivity to local workstations, printers, or IP cameras. It is designed for environments where simple, high-speed port density is the primary requirement over managed networking features.
Are the five ports on the DES-1005C Gigabit compatible? +
No, the D-Link DES-1005C is equipped with five 100M electrical ports. It is designed specifically for Fast Ethernet connectivity, offering a stable and reliable 100Mbps connection for each port, which is more than sufficient for everyday web browsing, file transfers, and general office productivity tasks.
How does the non-managed nature of the DES-1005C affect network management? +
Because the DES-1005C is a non-managed switch, it operates transparently, meaning it does not support VLANs, SNMP, or remote traffic monitoring. This simplicity ensures maximum reliability with virtually zero administrative overhead, making it the perfect choice for buyers looking for a straightforward, 'set it and forget it' hardware solution.
Can the DES-1005C be used to extend a network from an existing router? +
Yes, this switch is designed to expand the network ports available on your primary router. By connecting one port to your existing router's LAN port, the remaining four ports become instantly available to support additional wired devices, helping you overcome the limitations of the fixed port count on standard home ISP hardware.
