C9500-24Q-E Overview
Catalyst 9500 24-port 40G switch, Network Essentials C9500-24Q-E
Overview
C9500-24Q-E Overview
Cisco C9500-24Q-E, Managed, L2/L3, 40 Gigabit Ethernet, Full duplex, Rack mounting, 1U
C9500-24Q-E is one of the the Cisco Catalyst 9500 Series Switches. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick Specs

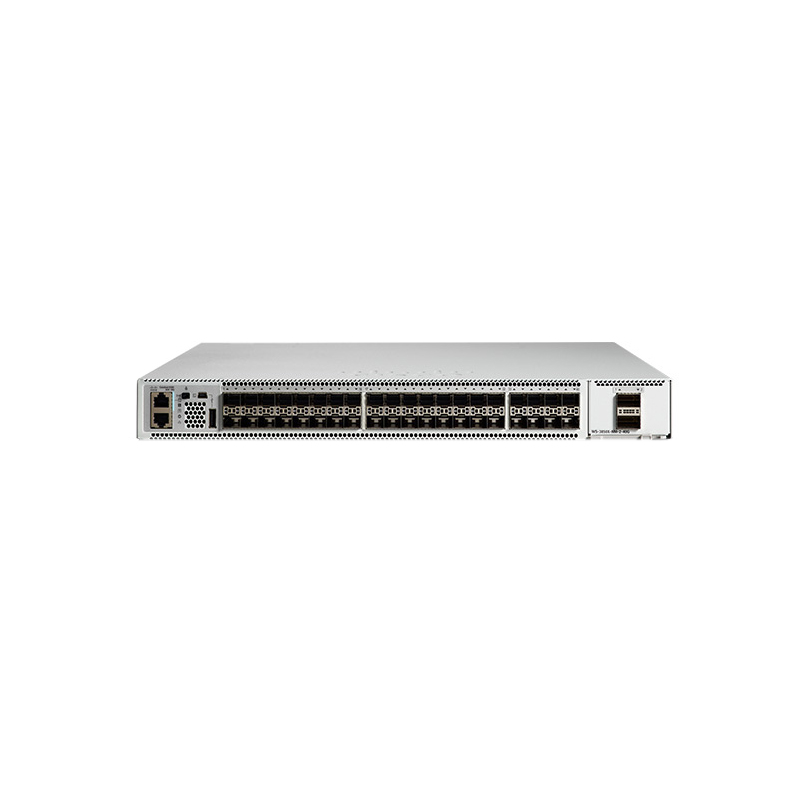

Figure 1 shows the appearance of C9500-24Q-E.
Product Code | C9500-24Q-E |
Description | Catalyst 9500 24-port 40G switch, Network Essentials |
Switching capacity | Up to 1920 Gbps |
Forwarding rate | Up to 1440 Mpps |
AC power max rating | 950W |
System power consumption | 850W max |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Rack units (RU) | 1 RU |
Product Details

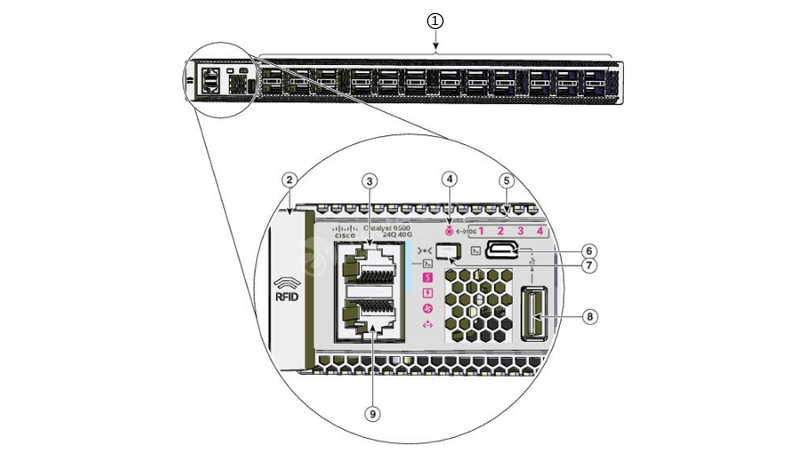

Figure 2 shows the front panel of C9500-24Q-E.
Note:
① | 24 40G QSFP ports |
② | RFID |
③ | Console port (RJ-45 Serial) |
④ | Blue beacon LED |
⑤ | 10G Status LEDs |
⑥ | USB mini Type B console port |
⑦ | Mode button |
⑧ | USB 2.0 host port |
⑨ | Ethernet management RJ-45 port |
The Accessories
Category | Model | Description |
Power Supply | PWR-C4-950WAC-R | 950W AC Config 4 Power Supply front to back cooling |
PWR-C4-950WAC-R/2 | 950W AC Config 4 Power Supply front to back cooling | |
Console Cables | CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
Catalyst 9500 24-port 40G switch, NW Ess. License, spare
- Managed L2/L3 IGMP
- MAC address table: 16000 entries Switching capacity: 1920 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power supply included
Summary Description
Cisco C9500-24Q-E=, Managed, L2/L3, 40 Gigabit Ethernet, Full duplex, Rack mounting, 1U
Need help with C9500-24Q-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9500-24Q-E Specification
C9500-24Q-E specifications | |
Performance specifications | |
Switching capacity | Up to 1920 Gbps |
Forwarding rate | Up to 1440 Mpps |
Total number of MAC addresses | Up to 64,000* |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect* Up to 32,000 host* |
Total number of IPv6 routes | Up to 32,000 indirect* Up to 16,000 host* |
Multicast scale | Up to 48,000* |
QoS ACL scale | Up to 18000* |
Security ACL scale | Up to 18000* |
FNF entries | Up to 512,000* |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9198 bytes |
Power supply specifications | |
Power Supply Feature | Support in the Catalyst 9500 Series |
AC power max rating | 950W |
System power consumption | 850W max |
Input-voltage range and frequency | AC 115 to 230 VAC, 50 to 60 Hz |
Power supply efficiency | 94% |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2901 BTU/hr (850W) max |
Input current | AC 10A at 115VAC, 5 A at 230VAC |
Output ratings | 12V at 79A, 12V at 3A |
Output holdup time | AC = 10 ms at maximum load |
Power-supply input receptacles | AC IEC 60320 C16 |
Power cord rating | AC 15A |
Dimensions, physical specifications, and MTBF | |
Description | Specifications |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Operating temperature | 32°F to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude | Operation up to 6000 ft |
MTBF (hours) | 127,660 |
Frequently Asked Questions
What are the primary performance capabilities of the Cisco C9500-24Q-E switch? +
The C9500-24Q-E is designed for high-performance campus core and aggregation environments. It features 24 fixed 40G QSFP+ ports, providing high-density throughput for bandwidth-intensive applications. Built on Cisco's specialized ASIC architecture, it delivers wire-rate switching performance and advanced Layer 3 routing protocols, ensuring low latency and massive scalability for modern enterprise networks requiring heavy data traffic management.
Does the C9500-24Q-E support advanced routing features out of the box? +
This model ships with the Network Essentials license, which provides a comprehensive suite of Layer 2 and Layer 3 features. It supports static routing, RIP, EIGRP, and OSPF for basic enterprise-grade connectivity. If your deployment requires more advanced capabilities like BGP, MPLS, or complex WAN edge routing, you may consider an upgrade to the Network Advantage license later.
Can the Cisco C9500-24Q-E be utilized as a Layer 2 switch? +
Yes, while the C9500-24Q-E is highly capable as a Layer 3 core switch, it fully supports Layer 2 functionality. You can configure VLANs, trunking, and Spanning Tree protocols just as you would on a standard access-layer switch. This flexibility allows the device to handle both high-speed switching and routing segments within your server farm or data center aggregation layer.
How do I manage and configure the Catalyst 9500 24-port 40G switch? +
Management is performed through the Cisco IOS XE operating system, which offers a familiar CLI for experienced engineers. Additionally, it supports programmable interfaces, including RESTCONF and NETCONF, facilitating automated deployment and orchestration via Cisco DNA Center or other SDN controllers. This ensures seamless integration into modern, intent-based network management workflows.
What are the physical deployment requirements for the C9500-24Q-E? +
The C9500-24Q-E is designed for standard 19-inch rackmount installation, occupying 1 rack unit (1RU) of space. Given the high-density 40G throughput, ensure your rack environment provides adequate front-to-back airflow and sufficient clearance for high-speed fiber cable management. Its compact form factor makes it an ideal choice for space-constrained server rooms or high-density distribution closets.
What type of transceivers are compatible with the 40G ports on this switch? +
The 24 ports on the C9500-24Q-E utilize QSFP+ form factors. It supports a variety of Cisco-certified 40G transceivers, including SR4, LR4, and BiDi optics, as well as Direct Attach Copper (DAC) cables for short-reach, high-speed interconnects within the rack. Always consult the Cisco Optics Compatibility Matrix to verify specific part numbers for your required reach and media type.
Is the C9500-24Q-E suitable for high-availability enterprise environments? +
Designed for maximum uptime, this switch supports redundant power supplies and fans. Its robust hardware architecture ensures operational stability in demanding core environments. By leveraging features like StackWise Virtual or standard FHRP protocols such as HSRP/VRRP, the C9500-24Q-E provides the resilience required to eliminate single points of failure in mission-critical network topologies.
What security features are built into the C9500-24Q-E? +
Security is integrated at the hardware level through Trust Anchor Technologies and secure boot processes. The switch supports comprehensive features like Access Control Lists (ACLs), control plane policing (CoPP), and DHCP snooping to protect your network infrastructure. These tools effectively mitigate internal and external threats, ensuring that traffic remains isolated and authenticated across your core network.
