Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) line card (C9400-LC-48U)The UPOE line card supports PoE, PoE+, and Cisco UPOE to deliver 15W, 30W, or 60W to the access point. 60W of inline power can power more devices―including IP phones, IPTVs, surveillance cameras, virtual desktop clients, and many others―without having to install extra wall or ceiling circuits while taking advantage of advanced power management capabilities such as Cisco EnergyWise.

Quick Specs

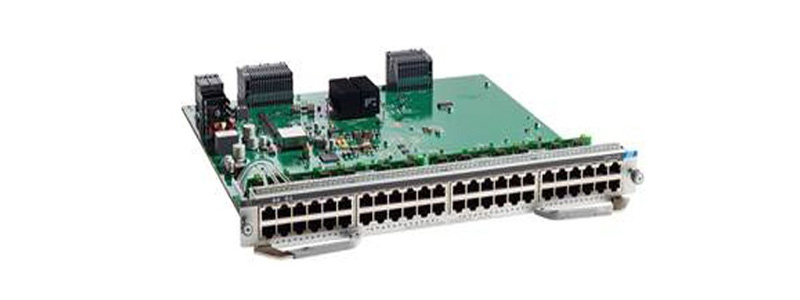

Figure 1 shows the appearance of C9400-LC-48U-B.

Table 1 shows the Quick Specs.

Features:

●   48 ports nonblocking

●   10/100/1000 module (RJ-45)

●   Supported on Cisco IOS XE Software Release 16.8.1 or later

●   PoE+ is enabled, capable of up to 30W on all ports in the line card

●   Energy Efficient Ethernet 802.3az

●   Supports IEEE 802.3af/at

●   IEEE 802.1AE (MACsec-256) capability in hardware

●   Layer 2 to Layer 4 Jumbo Frame support up to 9198 bytes

●   Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE

●   Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups
