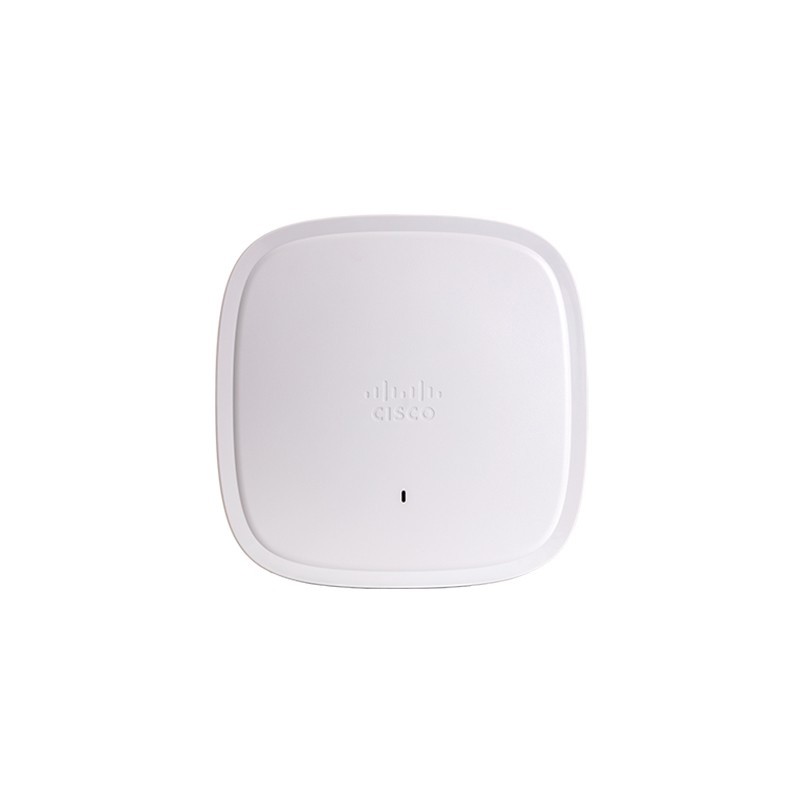

C9130AXE-A - Cisco Catalyst 9130 WiFi 6 Access Point
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
- Authenticity: Original Genuine OEM
C9130AXE-A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com Sam.Gov CAGE Code : 23P86
overview
specifications
faqs
reviews
C9130AXE-A Overview
Cisco Catalyst 9130AX Series C9130AXE-A
Overview
C9130AXE-A Overview
Cisco C9130AXE-A, 5380 Mbit/s, 100,1000,2500,5000 Mbit/s, Multi User MIMO, White, External, 13 dBi
The Cisco® Catalyst® 9130AX Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9130AXE-A is the Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain.
Product Details
Cisco AP C9130AX Series provides these features:
• Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
• Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC
• OFDMA and MU-MIMO
• Multigigabit support
• Internal and external antenna
Future feature support:
• IoT ready (BLE, other 802.15.4 protocols** like Zigbee)
** - Supported in future software releases
Supported Platforms
.
Supported wireless LAN controllers and Software | Recommended Model |
Cisco 3500 Series Wireless Controllers | |
Cisco 5520 Series Wireless Controllers | |
Cisco 8540 Series Wireless Controllers | |
Cisco 9800 series Wireless Controllers | |
Cisco Virtual Wireless Controller | / |
Cisco Unified Wireless Network Software Release 8.9 or later | / |
Cisco IOS ® XE Software Release 16.11 or later | / |
Compare to Similar Items
SKU | Description |
C9130AXE-A | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain |
C9130AXE-B | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain |
C9130AXE-D | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, D Domain |
C9130AXE-E | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain |
C9130AXE-H | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain |
C9130AXE-K | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, K Domain |
C9130AXE-Q | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, Q Domain |
C9130AXE-R | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, R Domain |
C9130AXE-S | Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain |
C9130AXE-A Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 5380 Mbit/s
- Power over Ethernet (PoE)
- External
Summary Description
Cisco C9130AXE-A, 5380 Mbit/s, 100,1000,2500,5000 Mbit/s, Multi User MIMO, White, External, 13 dBi
Need help with C9130AXE-A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9130AXE-A Specification
C9130AXE-A Specification | |
Software
| Catalyst 9130AXE • Cisco Unified Wireless Network Software Release 8.10MR1 or later • Cisco IOS ® XE Software Release 17.1.1 s or later |
Supported wireless LAN controllers
| • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities
| • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support |
802.11ac
| • 8x8 downlink MU-MIMO with eight spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
802.11ax
| • 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
Integrated antenna
| • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
External antenna with Smart antenna connector
| • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
Interfaces
| • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software) |
Indicators
| • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H)
| • Access point (without mounting brackets): - C9130AXE: 9.17 x 9.17 x 1.58 in. (23.3 x 23.3 x 4.0 cm) |
Environmental
| Cisco Catalyst 9130AXE • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) • Operating temperature: -4° to 122°F (-20° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft.(3000 m) |
System memory
| • 2048 MB DRAM • 1024 MB flash |
Warranty | Limited lifetime hardware warranty |
Available transmit power settings
| 2.4 GHz • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) • -4 dBm(0.39 mW) 5 GHz • 26 dBm (400 mW) • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) |
Maximum number of nonoverlapping channels
| 2.4 GHz • 802.11b/g: - 20 MHz: 3 • 802.11n: - 20 MHz: 3 • 802.11ax: - 20 MHz: 3 5 GHz • 802.11a: - 20 MHz: 26 FCC, 16 EU • 802.11n: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU • 802.11ac/ax: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU - 80 MHz: 5 FCC, 3 EU - 160 MHz 2 FCC, 1 EU Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
Compliance standards | • Safety: - IEC 60950-1 - EN 60950-1 - UL 60950-1 - CAN/CSA-C22.2 No. 60950-1 - AS/NZS60950.1 - UL 2043 - Class III equipment • Emissions: - CISPR 32 (rev. 2015) - EN 55032 (rev. 2012/AC:2013) - EN 55032 (rev. 2015) - EN61000-3-2 (rev. 2014) - EN61000-3-3 (rev. 2013) - KN61000-3-2 - KN61000-3-3 - AS/NZS CISPR 32 Class B (rev. 2015) - 47 CFR FCC Part 15B - ICES-003 (rev. 2016 Issue 6, Class B) - VCCI-CISPR 32 - CNS (rev. 13438) - KN-32 - QCVN 118:2018/BTTTT • Immunity: - CISPR 24 (rev. 2010) - EN 55024 + AMD 1(rev. 2010) - EN 55035: 2017 - KN35 • Emissions and immunity: - EN 301 489-1 (v2.1.1 2017-02) - EN 301 489-17 (v3.1.1 2017-02) - QCVN (18:2014) - QCVN 112:2017/BTTTT - KN 489-1 - KN 489-17 - EN 60601-1-2:2015 - EN 61000-6-1: 2007 • Radio: - EN 300 328 (v2.1.1) - EN 301 893 (v2.1.1) - AS/NZS 4268 (rev. 2017) - 47 CFR FCC Part 15C, 15.247, 15.407 - RSP-100 - RSS-GEN - RSS-247 - China regulations SRRC - LP0002 (rev 2018.1.10) - Japan Std. 33a, Std. 66, and Std. 71 • RF safety: - EN 50385 (rev. Aug 2002) - ARPANSA - AS/NZS 2772 (rev. 2016) - EN 62209-1 (rev. 2016) - EN 62209-2 (rev. 2010) - 47 CFR Part 1.1310 and 2.1091 - RSS-102 • IEEE standards: - IEEE 802.3 - IEEE 802.3ab - IEEE 802.3af/at - IEEE 802.11a/b/g/n/ac/ax - IEEE 802.11h, 802.11d • Security: - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 - 802.1X - Advanced Encryption Standard (AES) • Extensible Authentication Protocol (EAP) types: - EAP-Transport Layer Security (TLS) - EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 - Protected EAP (PEAP) v0 or EAP-MSCHAP v2 - EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) - PEAP v1 or EAP-Generic Token Card (GTC) - EAP-Subscriber Identity Module (SIM) |
Frequently Asked Questions
What are the primary performance benefits of the Cisco C9130AXE-A? +
The C9130AXE-A supports the Wi-Fi 6 (802.11ax) standard, offering increased capacity and efficiency in high-density environments. It utilizes OFDMA and MU-MIMO technology to manage high volumes of concurrent client connections, significantly reducing latency and improving throughput for mission-critical wireless applications compared to previous generation access points.
Does the C9130AXE-A require external antennas for deployment? +
Yes, this model features external antenna connectors, indicated by the 'E' in the product SKU. It provides flexibility for specialized deployment scenarios where you need to mount the access point in an enclosure or utilize directional antennas to concentrate coverage in specific zones like warehouses, auditoriums, or high-ceiling manufacturing floors.
How does the C9130AXE-A integrate with the Cisco Catalyst 9800 Series Wireless Controllers? +
This access point is fully compatible with Cisco Catalyst 9800 Series controllers and supports Cisco DNA Center. It enables intent-based networking, allowing administrators to automate provisioning, gain deep visibility into network health, and implement consistent security policies across the entire wireless infrastructure using the latest IOS-XE software features.
What radio configuration does the C9130AXE-A offer? +
The C9130AXE-A provides a flexible radio assignment, including a dedicated 4x4:4 tri-radio setup. This allows the hardware to support 2.4 GHz and 5 GHz bands simultaneously, while also featuring a dedicated sensor radio for security monitoring and spectrum analysis, ensuring that your network remains secure without compromising data throughput performance.
What is the recommended power source for the C9130AXE-A? +
To achieve full functionality, this access point is designed to operate on 802.3at (PoE+) or 802.3bt (UPOE) power standards. Providing the correct power level is essential to ensure that all radios and features, such as advanced security sensors and multi-gigabit uplink ports, function at full operational capacity without power-related performance throttling.
Can the C9130AXE-A be managed through a cloud-based interface? +
Yes, the C9130AXE-A is designed for deployment flexibility and can be managed via Cisco DNA Center or Cisco Meraki dashboard when operating in cloud-managed mode. This allows IT teams to choose the management platform that best aligns with their existing operational workflows and centralized network administration requirements.
What types of security protocols does the C9130AXE-A support? +
This model supports robust security features, including WPA3, the latest standard in wireless encryption. It also integrates seamlessly with Cisco Identity Services Engine (ISE) for advanced policy enforcement, threat detection via Cisco CleanAir, and encrypted traffic analytics, ensuring that your enterprise wireless network is protected against unauthorized access and sophisticated cyber threats.
Is the C9130AXE-A suitable for environments with high interference? +
Absolutely. It incorporates Cisco CleanAir technology, which actively detects and mitigates radio frequency interference from non-Wi-Fi sources. Combined with the tri-radio architecture that includes a dedicated scanning sensor, the device continuously monitors the RF spectrum to dynamically adjust channels, maintaining optimal connectivity and reliability in challenging industrial or office environments.
How can I request a bulk quote for multiple C9130AXE-A units? +
For organizations planning large-scale deployments, BuyRouterSwitch.com makes procurement efficient. You can easily reach out to our dedicated sales team via our request-a-quote form or direct contact channels. We specialize in providing competitive pricing and tailored procurement solutions for large-volume enterprise orders, ensuring you get the quantity you need to complete your network infrastructure projects on time.
