Mfr.part#:	C9115AXE-F

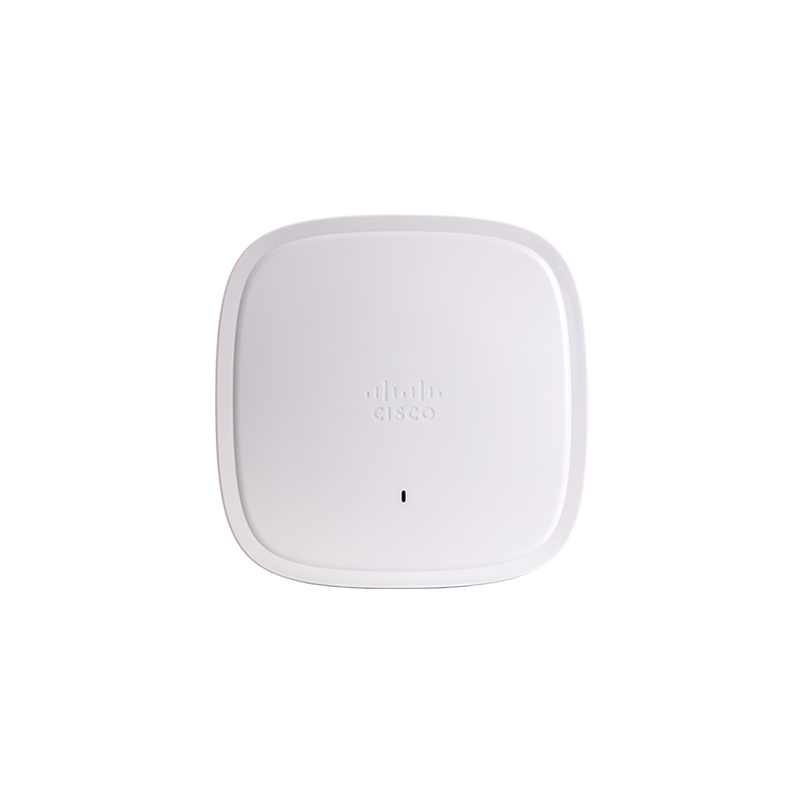

Name:	C9115AXE-F - Cisco Catalyst 9115 WiFi 6 Access Point
Detail:	Cisco Catalyst 9115AX Series C9115AXE-F
Availability:	In Stock
Condition:	New
Price:	$674.00

C9115AXE-F

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

C9115AXE-F Overview

Cisco Catalyst 9115AXE. Ethernet LAN data rates: 100,1000,2500 Mbit/s, Networking standards: IEEE 802.11ax, Cabling technology: 10/100/1000Base-T(X). Product colour: Grey, LED indicators: Status. Antenna type: Internal & external, Antenna direction type: Omni-directional. Flash memory: 1024 MB, Internal memory: 2048 MB. Width: 20.3 mm, Depth: 20.3 mm, Height: 3.8 mm

Cisco^® Catalyst^® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9115AXE-H is the Cisco Catalyst 9115AX Series Access Point, Internal antenna; Wi-Fi 6; 4x4:4 MIMO, F Domain.

Product Details

Cisco AP C9115AXE Series provides these features:

- 802.11ax (Wi-Fi 6)

- Uplink/downlink OFDMAFDMA

- MU-MIMO technology

- BSS coloring

- Target wake time

- Cisco Mobility Express

- Multigigabit Ethernet support

- Bluetooth 5.0

- Apple Features

Supported Platforms

Table 1 shows the supported platforms and software.

Supported wireless LAN controllers and Software	Recommended Model
Cisco 3500 Series Wireless Controllers	AIR-CT3504-K9
Cisco 5520 Series Wireless Controllers	AIR-CT5520-K9
Cisco 8540 Series Wireless Controllers	AIR-CT8540-K9 AIR-CT8540-1K-K9
Cisco 9800 series Wireless Controllers	C9800-40-K9 C9800-80-K9
Cisco Virtual Wireless Controller	/
Cisco Unified Wireless Network Software Release 8.9 or later	/
Cisco IOS ^®XE Software Release 16.11 or later	/

Compare to Similar Items

Table 2 shows the comparison of Cisco AP 9115AXE Series.

SKU	Description
C9115AXE-A	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, A Domain
C9115AXE-B	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, B Domain
C9115AXE-D	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, D Domain
C9115AXE-E	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, E Domain
C9115AXE-F	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, F Domain
C9115AXE-H	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, H Domain
C9115AXE-I	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, I Domain
C9115AXE-K	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, K Domain
C9115AXE-N	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, N Domain
C9115AXE-Q	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, Q Domain
C9115AXE-S	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, S Domain
C9115AXE-T	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, T Domain
C9115AXE-Z	Cisco Embedded Wireless Controller on Catalyst Access Point; Wi-Fi 6; 4x4:4 MIMO, Z Domain

Get More Information

Do you have any question about the C9115AXE-F?

Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas

● Wi-Fi 6 certifiable

● Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE

● OFDMA and MU-MIMO

● Multigigabit support

● Internal or external antenna

● Available with optional embedded wireless controller

2.4 GHz

5 GHz

IEEE 802.11ax

Power over Ethernet (PoE)

Internal & external

Summary Description

Cisco Catalyst 9115AXE, 100,1000,2500 Mbit/s, IEEE 802.11ax, 10/100/1000Base-T(X), Multi User MIMO, Grey, Status

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco C9115AXE-F?

Our lowest price for C9115AXE-F is $674.00 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

C9115AXE-F Specification

C9115AXE-F Specification
Description	Cisco Embedded Wireless Controller on Catalyst Access Point, F Domain
Software	• Cisco Unified Wireless Network Software Release 8.9 or later • Cisco IOS ^® XE Software Release 16.11or later
Supported wireless LAN controllers	• Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	• 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g beamforming • 20- and 40-MHz channels • PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support
802.11ac	• 4x4 downlink MU-MIMO with four spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS •CSD support
802.11ax	• 4x4 downlink MU-MIMO with four spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support
Integrated antenna	• 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth • 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	• Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces	• 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 (enabled via future software)
Indicators	• Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	• Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm)
Input power requirements	• 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) • Cisco power injector, AIR-PWRINJ6= • 802.3af PoE • Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.
Environmental	Cisco Catalyst 9115AXI • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft. • Operating temperature: 32° to 122°F (0° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft. Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled. Cisco Catalyst 9115AXE • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft. • Operating temperature: -4° to 122°F (-20° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft.
System memory	• 2048 MB DRAM • 1024 MB flash
Available transmit power settings	2.4 GHz • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) • -4 dBm (0.39 mW) 5 GHz • 26 dBm (400 mW) • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) • -4 dBm (0.39 mW)
Frequency band and 20-MHz operating channels	F regulatory domain: • 2.412 to 2.472 GHz; 13 channels • 5.250 to 5.350 GHz; 4 channels • 5.725 to 5.825 GHz; 4 channels
