C9105AXW-E Overview
Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, E Domain C9105AXW-E
Overview
C9105AXW-E Overview
Cisco Catalyst 9105AXW-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Wall Mount (Wall Plate included) (C9105AXW-E), 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, Multi User MIMO, Type C, Grey, Mexico
C9105AXW-E is a Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, and E regulatory domain. Cisco® Catalyst® 9105 Series Access Points are the most versatile next generation access point in enterprise grade. They are resilient, secure, and intelligent.
Quick Spec
Part Number | C9105AXI-E |
Software | Catalyst 9105AXW ● Cisco Unified Wireless Network Software Release 8.10MR3 or later ● Cisco IOS ® XE Software Release 17.3.1 or later |
Supported wireless LAN controllers | ● Cisco Catalyst 9800-80 , Catalyst 9800-40 Series Wireless Controllers ● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
802.11ax | ● 2x2 uplink/downlink MU-MIMO with two spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80- channels ● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
Integrated antenna | Catalyst 9105AXW ● 2.4 GHz: Peak gain 3 dBi, internal antenna ● 5 GHz: Peak gain 5 dBi, internal antenna |
Interfaces | Catalyst 9105AXW ● 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface ● 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) ● Management console port (RJ-45) ● USB 2.0 at 4.5W ● Passthru Port |
Product Details
Feature | Benefits |
Wi-Fi 6 (802.11ax) | The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard. |
Uplink/downlink OFDMA | OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency. |
Downlink MU‑MIMO technology | Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput. |
BSS coloring | Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. |
Target Wake Time | A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to 3x to 4x the savings achieved by 802.11n and 802.11ac. |
Intelligent Capture | Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks. |
Bluetooth 5 | Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics. |
Container support for applications | Container support enables edge computing capabilities for IoT applications on the host access point. |
Apple features | Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in Apple iOS, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications. At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices. This handshake enables the Cisco WLAN to provide an optimal Wi-Fi roaming experience to Apple devices. Additionally, the Cisco WLAN trusts Apple devices and gives priority treatment for business-critical applications specified by the Apple device. This feature is also known as Fast Lane. |
Compare to Similar Items
Model | Description |
C9105AXI-E | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, E Domain |
C9105AXI-H | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, H Domain |
C9105AXI-C | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, C Domain |
C9105AXI-N | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, N Domain |
C9105AXI-A | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, A Domain |
C9105AXI-S | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, S Domain |
C9105AXI-I | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, I Domain |
C9105AXI-F | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, F Domain |
C9105AXI-Q | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, Q Domain |
C9105AXI-K | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, K Domain |
C9105AXI-B | Cisco Catalyst 9105AX Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, B Domain |
C9105AXW-E | Cisco Catalyst 9105AX Wall Plate, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, E Domain |
C9105AXW-Z | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, Z Domain |
C9105AXW-H | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, H Domain |
C9105AXW-C | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, C Domain |
C9105AXW-N | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, N Domain |
C9105AXW-A | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, A Domain |
C9105AXW-S | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, S Domain |
C9105AXW-I | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, I Domain |
C9105AXW-F | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, F Domain |
C9105AXW-Q | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, Q Domain |
C9105AXW-K | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, K Domain |
C9105AXW-T | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, T Domain |
C9105AXW-B | Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, B Domain |
Catalyst 9105AXW-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Wall Mount (Wall Plate included) (C9105AXW-E)
- COMPACT AND POWERFUL: 2x2 MU-MIMO Wi-Fi 6, up to 1.49 Gbps data rate, optimised power consumption
- IOT-READY: Embedded IoT radios enabling BLE 5.0 and Zigbee, custom IoT app hosting with Docker-style containers

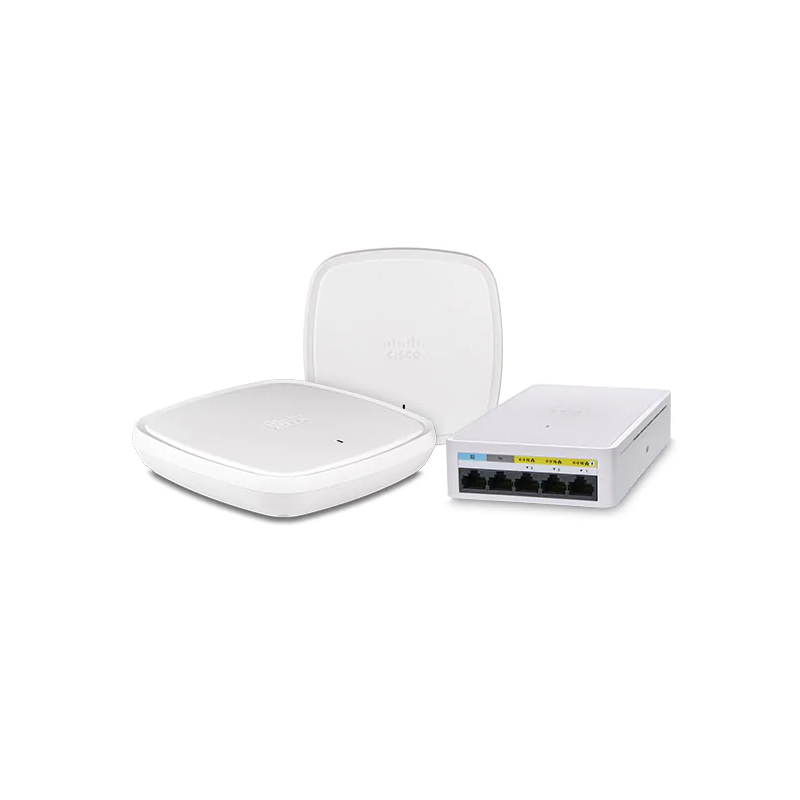

- DEPLOYMENT OPTIONS: Two form factors to choose from. Ceiling mount for best coverage (C9105AXI) and wall mount for ease of installation and expanding wired connections (C9105AXW)
- PEACE OF MIND: 90-day software and limited lifetime hardware warranty
- 2.4 GHz
- 5 GHz
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g
- Power over Ethernet (PoE)
- Internal
Summary Description
Cisco Catalyst 9105AXW-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Wall Mount (Wall Plate included) (C9105AXW-E), 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, Multi User MIMO, Type C, Grey, Mexico
Need help with C9105AXW-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9105AXW-E Specification
C9105AXW-E Specification | |
Software | Catalyst 9105AXW ● Cisco Unified Wireless Network Software Release 8.10MR3 or later ● Cisco IOS ® XE Software Release 17.3.1 or later |
Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities | ● 2x2 MIMO with two spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g ● 20- and 40-MHz channels ● PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
802.11ac | ● 2x2 downlink MU-MIMO with two spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80- MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
802.11ax | ● 2x2 uplink/downlink MU-MIMO with two spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80- channels ● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
Integrated antenna | Catalyst 9105AXW ● 2.4 GHz: Peak gain 3 dBi, internal antenna ● 5 GHz: Peak gain 5 dBi, internal antenna |
Interfaces | Catalyst 9105AXW ● 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface ● 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) ● Management console port (RJ-45) ● USB 2.0 at 4.5W ● Passthru Port |
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions | ● Access point (without mounting brackets): ◦ C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) |
Frequently Asked Questions
What are the primary performance advantages of the Cisco C9105AXW-E Wi-Fi 6 technology? +
The Cisco Catalyst 9105AXW-E leverages 802.11ax standards to provide increased efficiency, lower latency, and better handling of high-density environments. Featuring 2x2 MU-MIMO with two spatial streams, this access point ensures reliable connectivity and faster data throughput for end-user devices, making it an ideal upgrade for enterprises looking to transition to modern Wi-Fi 6 performance standards in wall-mount deployments.
In which physical environments should the C9105AXW-E wall plate be deployed? +
The C9105AXW-E is specifically engineered for wall-plate mounting, making it the perfect choice for hotel rooms, dormitories, assisted living facilities, and multi-dwelling units. Its compact, low-profile form factor allows for unobtrusive installation directly where coverage is needed most, ensuring that users receive optimal signal strength while maintaining the aesthetic integrity of the room.
How does the C9105AXW-E handle signal propagation with its internal antenna design? +
This access point utilizes an internal antenna array optimized for wall-mount installations. By focusing signal patterns outward from the wall, the C9105AXW-E provides targeted, consistent coverage within the localized area. This design minimizes interference from neighboring rooms, which is a common challenge in dense, multi-room hospitality or campus environments.
Is the C9105AXW-E compliant with regional wireless regulations? +
The 'E' in the C9105AXW-E SKU denotes the regulatory domain compliance for specific regions. Before deploying this device, confirm that your site location aligns with the regulatory requirements associated with the E-domain designation to ensure proper radio frequency operation and legal compliance within your specific local networking environment.
What is the role of 2x2 MIMO in the Cisco Catalyst 9105AXW-E? +
The 2x2 MIMO configuration with two spatial streams enables the C9105AXW-E to transmit and receive multiple data streams simultaneously. This capability significantly improves aggregate bandwidth and capacity, allowing the access point to serve multiple client devices more effectively without degrading the performance of other users connected to the same radio.
How does the wall plate form factor simplify cabling and connectivity? +
The wall-plate design allows for a clean, direct installation over existing junction boxes. It is designed to utilize standard Ethernet cabling, providing a seamless transition from wired to wireless access at the desk or bedside. This reduces the need for extensive cabling runs, simplifying deployment in retrofitted buildings or new construction projects that prioritize efficient cable management.
Are there specific power requirements to consider for the C9105AXW-E? +
The C9105AXW-E is designed to be powered via Power over Ethernet (PoE), typically conforming to standard PoE specifications. By drawing power directly through the Ethernet cable, it eliminates the need for localized AC power adapters, which simplifies installation and ensures a more reliable power delivery method for enterprise-grade wireless infrastructure.
How do I manage the C9105AXW-E within a larger Catalyst wireless architecture? +
Management is typically handled through Cisco’s centralized wireless controller platforms, such as the Catalyst 9800 series. These controllers provide comprehensive visibility, automated radio resource management, and security policy enforcement, allowing IT administrators to manage the C9105AXW-E alongside other APs in the network from a single pane of glass.
