| Name: |
ASA5508-FTD-K9 - Cisco ASA 5500 Firewalls |
| Mfr. Part #: |
ASA5508-FTD-K9
|
| Condition: | New |
| Authenticity: | Original Genuine OEM |
| Availability: | In Stock |
| Brand: | Cisco |
ASA5508-FTD-K9
Shipping:
Free ground shipping within United States up to 10LBS
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
ASA5508-FTD-K9 Overview
ASA 5508-X with Firepower Threat Defense. 8GE. AC ASA5508-FTD-K9
Overview
Cisco ASA5508-FTD-K9, 0.45 Gbit/s, 1 Gbit/s, 250 Mbit/s, 123 BTU/h, 3DES, AES, Wired
The ASA5508-FTD-K9 is the ASA 5508-X with Firepower Threat Defense. 8GE. AC.
Quick Spec

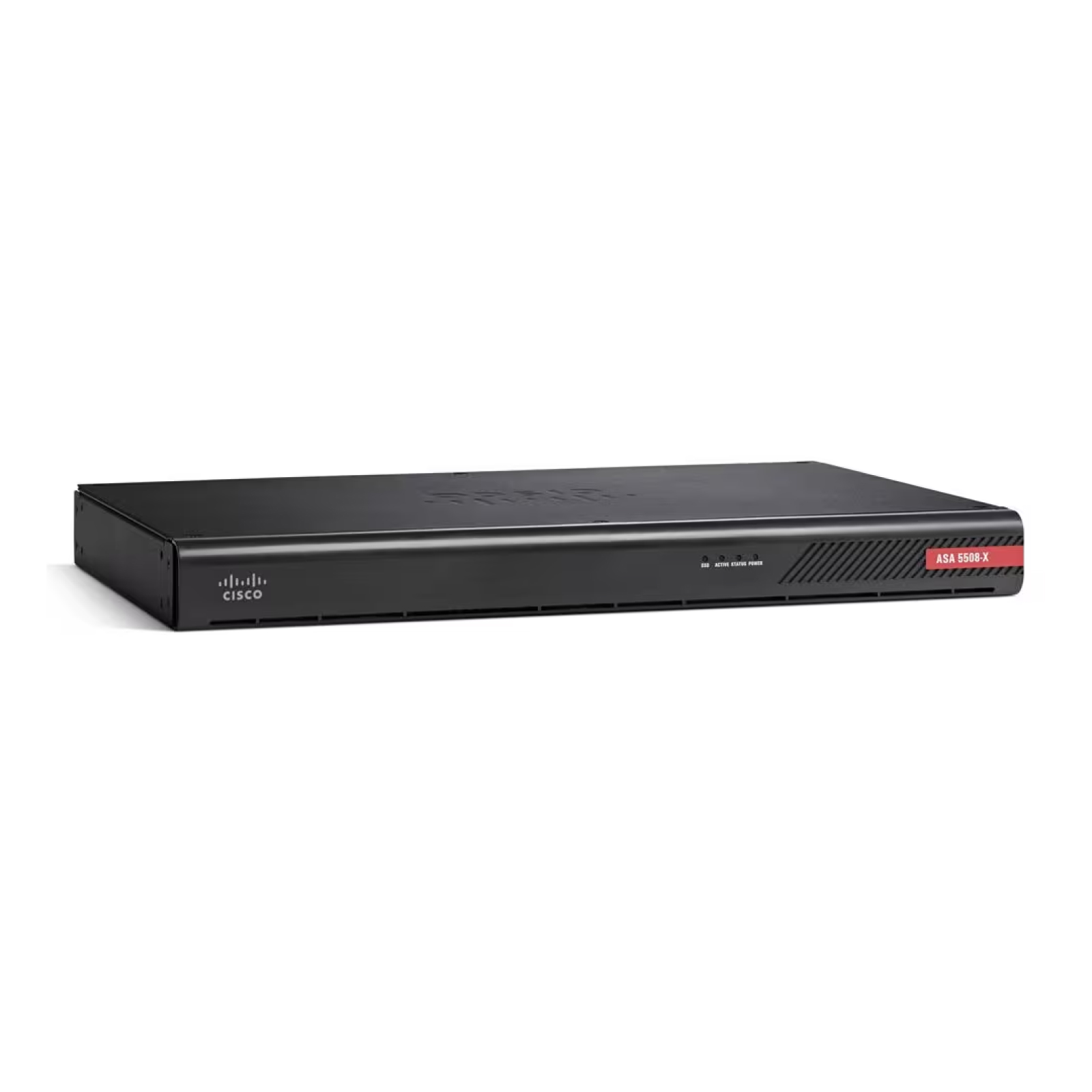

Figure 1 shows the appearance of ASA5508-FTD-K9.
Product Number | ASA5508-FTD-K9 |
Product Description | ASA 5508-X with Firepower Threat Defense. 8GE. AC |
Throughput: Application Control (AVC) | 450 Mbps |
Throughput: Application Control (AVC) and IPS | 250 Mbps |
Stateful inspection throughput (maximum) | 1 Gbps |
Stateful inspection throughput (multiprotocol) | 500 Mbps |
Triple Data Encryption Standard/ | 100 Mbps |
Users/nodes | Unlimited |
Dimensions(H x W x D) | 1.72 x 17.2 x 11.288 in.(4.369 x 43.688 x 28.672 cm) |
Weight (with AC power supply) | 8 lb (3 kg) |
Product Details

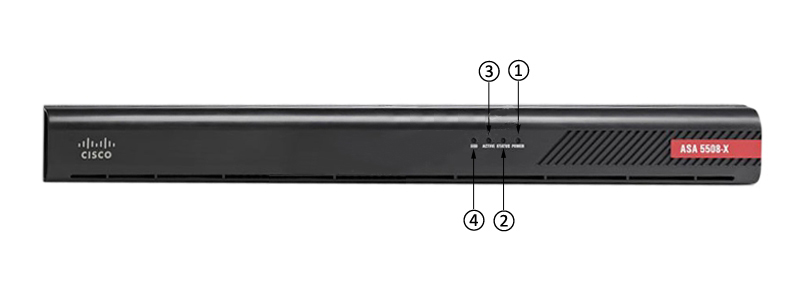

Figure 2 shows the front panel of ASA5508-K9. The ASA5508-FTD-K9 is similiar with it.
Number | LED | Color | Description |
① | Power | Unlit | Power supply off |
Solid Green | Power supply on | ||
② | Status | Green | Normal system function. |
Amber | Critical alarm indicating one or more of the following: ·Major failure of a hardware or software component. ·Over-temperature condition. ·Power voltage outside the tolerance range. | ||
③ | Active | Solid Green | Failover pair operating normally. |
Unlit | Failover is not operational. | ||
④ | SSD | Unlit | No SSD present. |
Green | Activity on the drive. |

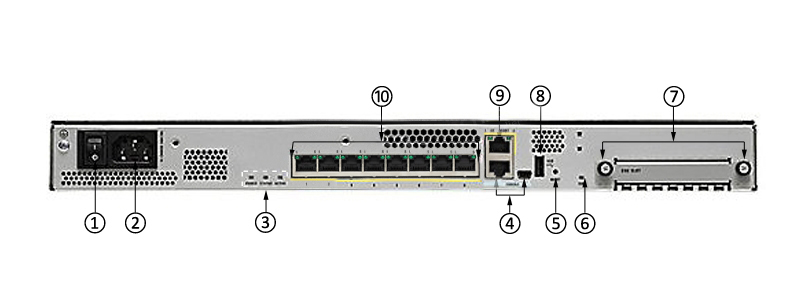

Figure 3 shows the back panel of ASA5508-K9. TheASA5508-FTD-K9 is similiar with it.
Note：
① | Power switch | ⑥ | SSD LED |
② | Power cord socket | ⑦ | SSD bay |
③ | Status LEDs | ⑧ | USB port |
④ | Console ports | ⑨ | Management port |
⑤ | Reset button | ⑩ | Network data ports |
· Console ports are two serial ports, a mini USB Type B, and a standard RJ-45 (8P8C).
· Management port connects with an RJ-45 cable.
· Network data ports include eight Gigabit Ethernet RJ-45 (8P8C) network I/O interfaces.
Compare to Similar Items
Models | ASA5508-FTD-K9 | |
Product Description | ASA 5508-X with Firepower Threat Defense. 8GE. AC | ASA 5506-X with Firepower Threat Defense. 8GE. AC |
Stateful Inspection Throughput (multiprotocol) | 500 Mbps | 300 Mbps |
Maximum 3DES/AES VPN Throughput | 175 Mbps | 100 Mbps |
Memory | 8GB | 4GB |
Flash | 8GB | 8GB |
Height (rack units) | 1 RU | Desk Top |
FirePOWER services, 8GE Data, 1GE Mgmt, AC, 3DES/AES w/ Firepower Threat Defense
- 1U Firewall throughput: 450 Mbit/s
- 123 BTU/h
- Wired
- 8000 MB
- SSD capacity: 80 GB
Summary Description
Cisco ASA5508-FTD-K9, 0.45 Gbit/s, 1 Gbit/s, 250 Mbit/s, 123 BTU/h, 3DES, AES, Wired
Need help with ASA5508-FTD-K9?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
ASA5508-FTD-K9 Specification
ASA5508-FTD-K9 Specification | |
Product Number | ASA5508-FTD-K9 |
Product Description | ASA 5508-X with Firepower Threat Defense. 8GE. AC |
Throughput: Application Control (AVC) | 450 Mbps |
Throughput: Application Control (AVC) and IPS | 250 Mbps |
Maximum concurrent sessions | 100,000 |
Maximum New Connections per second | 10,000 |
Supported applications | More than 3,000 |
URL categories | 80+ |
Number of URLs categorized | More than 280 million |
Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
On-Device Management | ASDM (version 7.3 or higher required) |
Feature | Cisco ASA 5508-X w/ FirePOWER Services |
Stateful inspection throughput (maximum) | 1 Gbps |
Stateful inspection throughput (multiprotocol) | 500 Mbps |
Triple Data Encryption Standard/ | 175 Mbps |
Users/nodes | Unlimited |
IPsec site-to-site VPN peers | 100 |
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 100 |
Virtual interfaces (VLANs) | 50 |
Security contexts5(included; maximum) | 2; 5 |
High availability | Active/ |
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
Expansion slot | N/A |
User-accessible Flash slot | No |
USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
Integrated I/O | 8 x 1GE |
Expansion I/O | N/A |
| |
Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
Serial ports | 1 RJ-45 and Mini USB console |
Solid-state drive | 80 GB mSata |
| |
Memory | 8 GB |
System flash | 8 GB |
System bus | Multibus architecture |
Temperature | 32 to 104°F (0 to 40 °C) |
Relative humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
Acoustic | 41.6 A-weighted decibels (dBA) type |
67.2 dBA max | |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
AC normal line voltage | 91 to 240 VAC |
AC current | 0.25AC amps |
AC frequency | 50/60 Hz |
Dual-power supplies | None |
DC domestic line voltage | N/A |
DC international line voltage | N/A |
DC current | N/A |
Steady state | 12V @3.0A |
Maximum | 12V @ 5A |
Maximum | 123 Btu/hr |
Form factor | 1 rack unit (RU), 19-in. rack-mountable |
Dimensions(H x W x D) | 1.72 x 17.2 x 11.288 in.(4.369 x 43.688 x 28.672 cm) |
Weight (with AC power supply) | 8 lb (3 kg) |
