Mfr.part#:	AIRAP1852I-QK910C
Name:	AIRAP1852I-QK910C - Cisco Aironet 1852i Access Point
Detail:	Cisco Aironet 1850i Series 10-pack with Mobility Expre, Q Regulatory Domain AIRAP1852I-QK910C
Availability:	In Stock
Condition:	New

AIRAP1852I-QK910C

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

AIRAP1852I-QK910C Overview

Cisco Aironet 1852i. Maximum data transfer rate: 2000 Mbit/s, Maximum data transfer rate (5 GHz): 1700 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2. WAN connection: Ethernet (RJ-45). AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 44 - 57 V. Placement: Ceiling, Wall, Product colour: White, Certification: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, EN 50155 , FCC Part...

AIRAP1852I-QK910C is one of the Cisco Aironet 1850 Series Access Points. Cisco 1850 AP series is ideal for small and medium-sized networks. This series supports enterprise-class 4x4 MIMO, four-spatial-stream access points that support the IEEE’s new 802.11ac Wave 2 specification. The 1850 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support. The model AIRAP1852I-QK910C provides 10-pack with Mobility Expre, Q Regulatory Domain and internal antennas. Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.

Quick Specs

Table 1 shows the quick specs of AIRAP1852I-QK910C.

Part Number	AIRAP1852I-QK910C
Description	Cisco Aironet 1850i Series 10-pack with Mobility Expre, Q Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Features	- 4x4 MIMO with four spatial streams, single-user MIMO - 4x4 MIMO with three spatial streams, multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Regulatory Domain	Q (Q regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 11 channels
Antenna	Internal Antenna
Interfaces	- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) - Management console port (RJ-45) - USB 2.0 (enabled via future software)
Dimensions (W x L x H)	8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)

Product Details

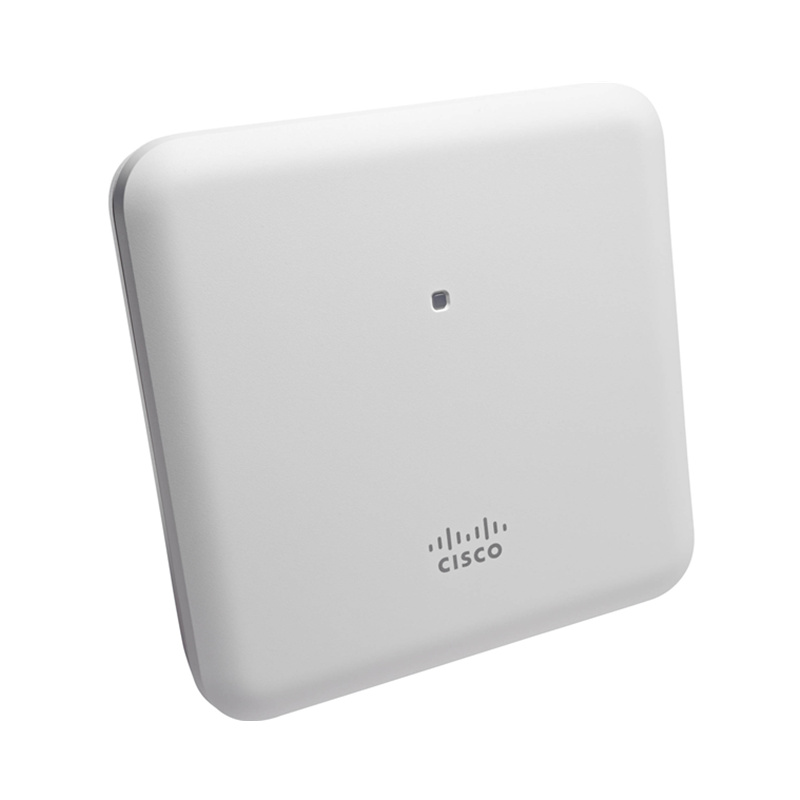

Figure 1 shows the AIR-AP1852I LED Indicator Position.

AIR-AP1852I Face

Note: ① LED indicator position

Table 2 shows the AP LED indicators’ descriptions.

Message Type	LED State	Message Meaning
Association status	Chirping Green	Normal operating condition, but no wireless client associated
Association status	Green	Normal operating condition, at least one wireless client association
Boot loader status	Green	Executing boot loader
Boot loader error	Red	Boot loader signing verification failure
Access point regulatory domain priming status	Blinking Amber	AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress
	Cycling Red, Green and off	AP waiting to be primed
	Chirping Red	AP primed to a wrong regulatory domain
Operating status	Blinking amber	Software upgrade in progress
	Cycling through green, red, and amber	Discovery/join process in progress
	Rapidly cycling through red, green, amber, and off.	Access point location command invoked from controller web interface.
Access point operating system errors	Cycling through red, green, amber, and off	General warning; insufficient inline power

Figure 2 shows AIR-AP1852I Ports and Connections.

AIR-AP1852I Ports and Connections

Note:

①	Mode button	④	AUX (Auxiliary) port.
②	RJ-45 console port	⑤	PoE-In port (Ethernet Uplink port)
③	USB 2.0 port	⑥	48 V DC input power port

AUX (Auxiliary) port appears in the wireless controller user interface as GigabitEthernet1. This port, along with the PoE-In port, is used for Link Aggregation. This port is disabled when using 802.3af (15.4W) power.

Compare to Similar Items

Table 3 shows the comparison between two AP.

Part Number	AIRAP1852I-QK910C	AIR-AP1852I-Q-K9C
Description	Cisco Aironet 1850i Series 10-pack with Mobility Expre, Q Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.	802.11ac Wave 2 Access Point, 4x4:4 ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Antenna	Internal Antennas	Internal Antennas
Regulatory Domain	Q (Q regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 11 channels	Q (Q regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 11 channels

Support & Resources

[PDF] Cisco Indoor Access Points Comparison Chart

Get more information

Do you have any question about the AIRAP1852I-QK910C?

Dual-band, controller-based 802.11a/g/n/ac, Wave 2, configurable, w / Software Mobility Express, Regulatory Domain Q

2.4 GHz

5 GHz 1700 Mbit/s

Maximum data transfer rate: 2000 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2

Power over Ethernet (PoE)

Antennas quantity: 4 Internal

Summary Description

Cisco Aironet 1852i, 2000 Mbit/s, 1700 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i,..., 80 MHz

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIRAP1852I-QK910C?

Click hereto find the lowest discounted price for AIRAP1852I-QK910C.

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

AIRAP1852I-QK910C Specification

AIRAP1852I-QK910C Specification
Description	Cisco Aironet 1850i Series 10-pack with Mobility Expre, Q Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points
Regulatory Domain	Q (Q regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 11 channels
Deployment modes	Centralized local, Standalone, Sniffer, Cisco FlexConnect, Monitor, OfficeExtend, Mesh
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers, Cisco Catalyst 3650/3850 Series switch with integrated controller Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	4x4 MIMO with four spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 600 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	4x4 MIMO with four spatial streams, single-user MIMO 4x4 MIMO with three spatial streams, multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support Rogue device detection
Integrated antenna	2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Environmental	Cisco Aironet 1850i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1 GB DRAM 256 MB flash
Input power requirements	AP1850: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	20.9W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	802.3at Enhanced PoE Cisco power injector, AIR-PWRINJ4= Cisco local power supply, AIR-PWR-C= Cisco power injector, AIR-PWRINJ5= (Note:this injector supports 802.3af only) 802.3af Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2x3 from 3x4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e.
Warranty	Limited lifetime hardware warranty
