Mfr.part#:	AIRAP1832I-ZK910C

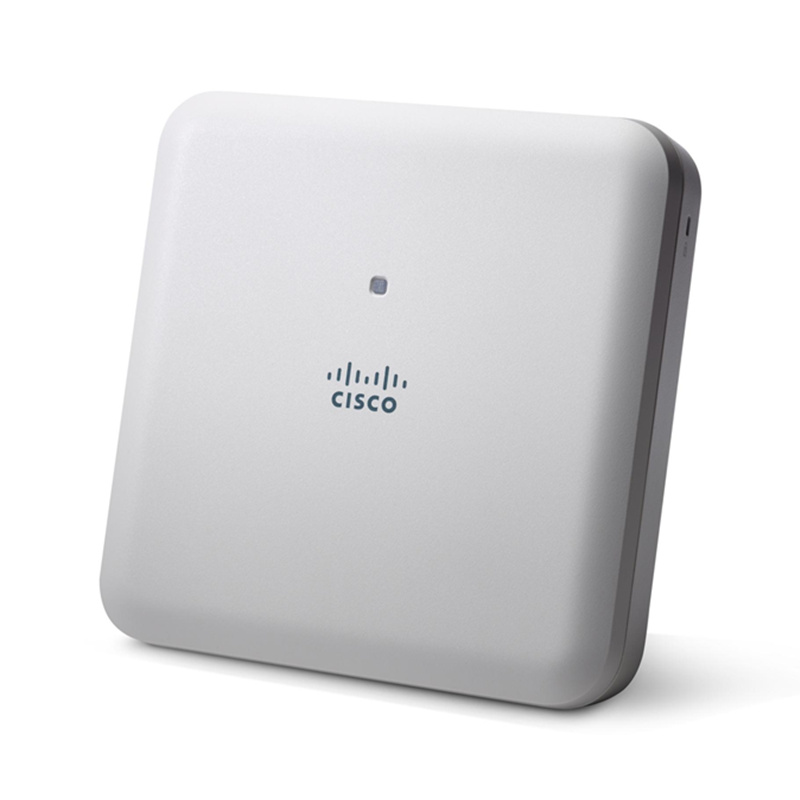

Name:	AIRAP1832I-ZK910C - Cisco Aironet 1832i Access Point
Detail:	Cisco Aironet 1830 Series 10-pack with Mobility Expre, Z Regulatory Domain AIRAP1832I-ZK910C
Availability:	In Stock
Condition:	New

AIRAP1832I-ZK910C

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

AIRAP1832I-ZK910C Overview

AIRAP1832I-ZK910C is one of the Cisco Aironet 1830 Series Access Points. Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard. The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. The model AIRAP1832I-ZK910C provides Z Regulatory Domain and internal antennas. It provides 10-pack with Mobility Express. Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.

Quick Specs

Table 1 shows the quick specs of AIRAP1832I-ZK910C.

Part Number	AIRAP1832I-ZK910C
Description	Cisco Aironet 1830 Series 10-pack with Mobility Express, 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, Z Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Features	- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 867 Mbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Regulatory Domain	Z (Z regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) - 5.745 to 5.825 GHz; 5 channels
Integrated antenna	- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° - 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces	- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - Management console port (RJ-45) - USB 2.0 (enabled via future software)
Dimensions (W x L x H)	8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)

Product Details

Figure 1 shows the AIR-AP1832I LED Indicator Position.

AIR-AP1832I LED Indicator Position

Note: ① LED indicator position

Table 2 shows the AP LED indicators’ descriptions.

Message Type	LED State	Message Meaning
Association status	Chirping Green	Normal operating condition, but no wireless client associated
Association status	Green	Normal operating condition, at least one wireless client association
Boot loader status	Green	Executing boot loader
Boot loader error	Red	Boot loader signing verification failure
Access point regulatory domain priming status	Blinking Amber	AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress
	Cycling Red, Green and off	AP waiting to be primed
	Chirping Red	AP primed to a wrong regulatory domain
Operating status	Blinking amber	Software upgrade in progress
	Cycling through green, red, and amber	Discovery/join process in progress
	Rapidly cycling through red, green, amber, and off.	Access point location command invoked from controller web interface.
Access point operating system errors	Cycling through red, green, amber, and off	General warning; insufficient inline power

Figure 2 shows AIR-AP1832I Ports and Connections.

AIR-AP1832I Ports and Connections

Note:

①	Mode button	④	PoE-In port (Ethernet Uplink port)
②	RJ-45 console port	⑤	48 V DC input power port
③	USB 2.0 port

Compare to Similar Items

Table 3 shows the comparison between two AP.

Part Number	AIR-AP1832I-Z-K9	AIRAP1832I-ZK910C
Description	802.11ac Wave 2 AP, 3x3:2	Cisco Aironet 1830 Series 10-pack with Mobility Express, 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, Z Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Integrated antenna	Yes	Yes
Regulatory Domain	Z (Z regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) - 5.745 to 5.825 GHz; 5 channels	Z (Z regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) - 5.745 to 5.825 GHz; 5 channels

Support & Resources

[PDF] Cisco Indoor Access Points Comparison Chart

Get more information

Do you have any question about the AIRAP1832I-ZK910C?

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIRAP1832I-ZK910C?

Click hereto find the lowest discounted price for AIRAP1832I-ZK910C.

Explore even more affordable prices for Cisco 1830 Access Point and Cisco products.

specifications

Specification

AIRAP1832I-ZK910C Specification

AIRAP1832I-ZK910C Specification
Description	Cisco Aironet 1830 Series 10-pack with Mobility Express, 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, Z Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points
Deployment modes	Centralized, standalone, sniffer, Cisco FlexConnect^™, monitor, OfficeExtend, mesh
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst^®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	3x3 MIMO with two spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 300 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	3x3 MIMO with two spatial streams, single-user or multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 867 Mbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Regulatory Domain	Z (Z regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) - 5.745 to 5.825 GHz; 5 channels
Integrated antenna	2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Environmental	Cisco Aironet 1830i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1 GB DRAM 256 MB flash
Input power requirements	AP1830: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	15.4W Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	802.3af/802.3at Enhanced PoE Cisco local power supply, AIR-PWR-C= Cisco power injector, AIR-PWRINJ5= (Note:This injector supports 802.3af only), AIR-PWRINJ6= Note: If 802.3af PoE is the source of power, the USB port is disabled.
Warranty	Limited lifetime hardware warranty
