Mfr.part#:	AIR-PWRINJ6
Name:	Cisco Aironet Power Injector AIR-PWRINJ6
Detail:	Power Injector (802.3at) for Aironet Access Points AIR-PWRINJ6
Availability:	In Stock
Condition:	New
Price:	$150.00

AIR-PWRINJ6

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

AIR-PWRINJ6 Overview

Cisco AIR-PWRINJ6. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at. Product colour: Black. Power over Ethernet (PoE) power per port: 15.4 W, Total Power over Ethernet (PoE) budget: 30 W. Number of products included: 1 pc(s)

The Cisco AIR-PWRINJ6 Aironet Power Injector increases wireless LAN deployment flexibility of Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

Quick Specs

Table 1 shows the Quick Specs.

SKU	AIR-PWRINJ6
Dimensions	2.09 x 1.28 x 5.5 in
Connectors	RJ-45, EIA 568A and 568B
Data Transfer Rate	10/100/100 Mbps
Power	30 W (user port), 100 - 240V AC, 0.67 A, 50 - 60 Hz (input), 55V DC (output)
Reliability	MTBF 100000 hrs at 25 deg C
Thermal Rating	20 BTU/Hr at 240V AC

Product Details

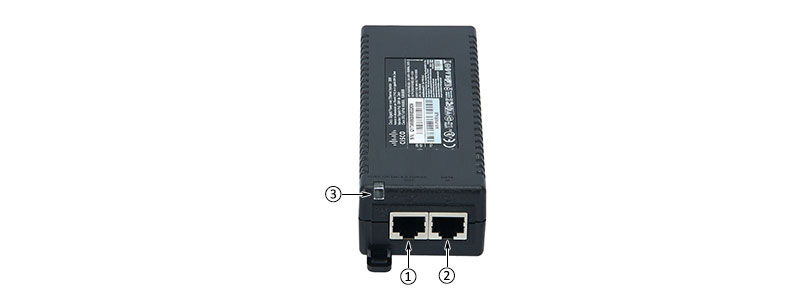

Figure 1 shows the front panel of AIR-PWRINJ6.

Note:

①	AP Connector Port (Data + Power Out)
②	Switch Connector Port (Data In)
③	Status LED

Supported Access Points

Table 2 shows some supported cisco access points.

Product Name	Details
AIR-OEAP1810-E-K9	802.11ac Wave 2 OfficeExtend AP, E Regulatory Domain
AIR-AP1810W-E-K9	802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, E Regulatory Domain
AIR-AP1810W-E-K9	802.11ac Wave 2 OfficeExtend AP, B Regulatory Domain (for US)
AIR-OEAP1810-B-K9	802.11ac Wave 2 OfficeExtend AP, Q Regulatory Domain

Compare to Similar Items

Table 3 shows the comparison.

Product Name	AIR-PWRINJ6	AIR-PWRINJ4	AIR-PWRINJ5
Device Type	PoE injector - external	PoE injector - external	PoE injector - external
Dimensions	2.09 in x 1.28 in x 5.5 in	6.5 in x 3.1 in x 1.7 in	6.5 in x 2.6 in x 1.4 in
Connectors	RJ-45, EIA 568A and 568B	1 x RJ-45	2 RJ-45 10/100/1000 (Cat 5 or better Ethernet cable)
Input Voltage	100 - 240V AC	100 - 240V AC	100 - 240V AC

Get More Information

Do you have any question about the AIR-PWRINJ6?

Power Injector 802.3af, 802.3at

10,100,1000 Mbit/s

Power over Ethernet (PoE) IEEE 802.3af, IEEE 802.3at

Black

Summary Description

Cisco AIR-PWRINJ6, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, Black, 15.4 W, 30 W

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-PWRINJ6?

Our lowest price for AIR-PWRINJ6 is $150.00 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

AIR-PWRINJ6 Specification

AIR-PWRINJ6 Specification
Dimensions (W, H, L)	53 mm x 32.5 mm x 140 mm 2.09 in x 1.28 in x 5.5 in
Data Rates	10/100/100 Mbps
PoE Output	30 W (user port), 100 - 240 VAC, 0.67 A, 50 - 60 Hz (input), 55 VDC (output)
User Port Power	30 Watts
Input Power Requirements	AC Input Voltage: 100 to 240 V AC AC Input Current: 0.67 A @ 100 - 240 V AC AC Frequency: 50 to 60 Hz
Connectors	Shielded RJ-45, EIA 568A and 568B
Environmental Conditions	Operating Ambient Temperature: -4ºF to 104ºF (-20ºC to 40ºC) at 30 W; -4ºF to 122ºF (-20ºC to 50ºC) at 25 W Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)
Reliability	MTBF: 100,000 hrs @ 25ºC
Thermal Rating	20 BTU/Hr @ 240 V AC
Regulatory Compliance	IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant
Electromagnetic Emission and Immunity	FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI
Safety	UL 60950-1 IEC/EN 60950-1
