Mfr.part#:

AIR-CAP1532IBK9-RF

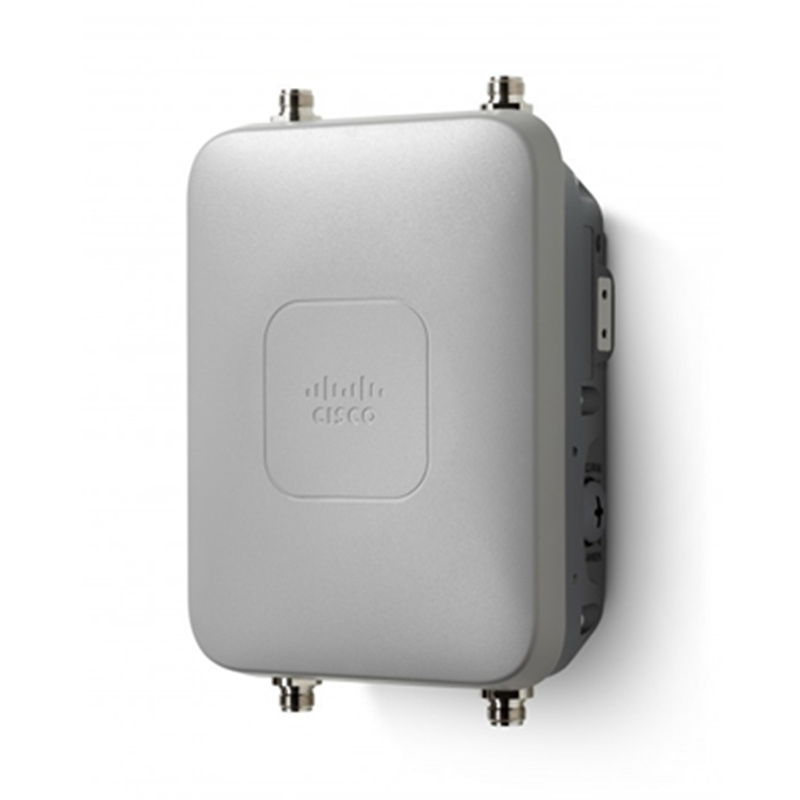

Name: AIR-CAP1532IBK9-RF - Cisco Aironet 1532I Outdoor Access Point
Detail:
802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain, Remanufactured AIR-CAP1532IBK9-RF
Availability: In Stock
Condition: New

AIR-CAP1532IBK9-RF

802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain, Remanufactured AIR-CAP1532IBK9-RF
Call for Price
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
resources
reviews
overview
Overview

AIR-CAP1532IBK9-RF Overview

Cisco 1530I. Maximum data transfer rate: 1000 Mbit/s, Wi-Fi data rate (max): 300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, TKIP, WPA, WPA2, VPN support: IPsec, L2TP. WAN connection: Ethernet (RJ-45). AC input voltage: 24 - 57 V, Power consumption (max): 30 W. Placement: Wall, Product colour: White, Certification: ANSI/IEEE C62.41 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 EN60950 FCC 15.247, 15.407 FCC...

Part NumberAIR-CAP1532IBK9-RF
Description802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain, Remanufactured
Features
  • 3x3 MIMO with 3 spatial streams (2.4 GHz) and 2x3 MIMO with 2 spatial streams (5 GHz)
  • 20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels
  • PHY data rates up to 300 Mbps
  • Packet aggregation: A-MPDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
Interfaces
  • WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • Management console port (RJ-45) with Reset button
  • DC power input
  • Multicolor LED
Dimensions(L x W x H)9 x 7 x 4 in. (23 x 17 x 10 cm) Volume: 179 cubic in. (2.9 liters)
Weight5.0 lb (2.3 kg)

Internal, Dual Band, 802.11n, Gigabit Ethernet, B Domain

  • 2.4 GHz
  • 5 GHz
  • Maximum data transfer rate: 1000 Mbit/s
  • IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • 802.1x RADIUS, AES, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, TKIP, WPA, WPA2
  • Power over Ethernet (PoE)
  • Internal Integrated antenna

Summary Description

Cisco 1530I, 1000 Mbit/s, 300 Mbit/s, 10,100,1000 Mbit/s, 2.4/5 GHz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 802.1x RADIUS, AES, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, TKIP, WPA, WPA2

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-CAP1532IBK9-RF?

Click hereto find the lowest discounted price for AIR-CAP1532IBK9-RF.

Explore even more affordable prices for Wireless and Cisco products.

specifications
Specification

AIR-CAP1532IBK9-RF Specification

AIR-CAP1532IBK9-RF Specification

General
Device TypeWireless access point
Ruggedized DesignOutdoor
Width9.1 in
Depth6.7 in
Height3.9 in
Weight5.07 lbs
Networking
Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate300 Mbps
Line Coding FormatCCK
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Network / Transport ProtocolL2TP, IPSec
Frequency Band2.4 GHz, 5 GHz
FeaturesMAC address filtering, DFS support, VPN passthrough, reset button, 2T3R MIMO technology, 3T3R MIMO technology, Cisco BandSelect technology, Cisco VideoStream technology
Encryption AlgorithmLEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication MethodX.509 certificates
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n
Antenna
AntennaInternal
Expansion / Connectivity
Interfaces1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x management - RJ-45
Miscellaneous
Compliant StandardsMIL-STD 810F, ANSI C62.41, EN 60950, ICES-003, IEC 60950, UL 60950, IEC 60529 IP67, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, AS/NZS 4268, EN 301.893, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, CAN/CSA C22.2 No. 60950
Pricing TypeRefurbished
Power
Power Over Ethernet (PoE) SupportedPoE
Power Consumption Operational30 Watt
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Environmental Parameters
Min Operating Temperature-22 °F
Max Operating Temperature149 °F
