Mfr.part#:

AIR-CAP1532I-B-K9

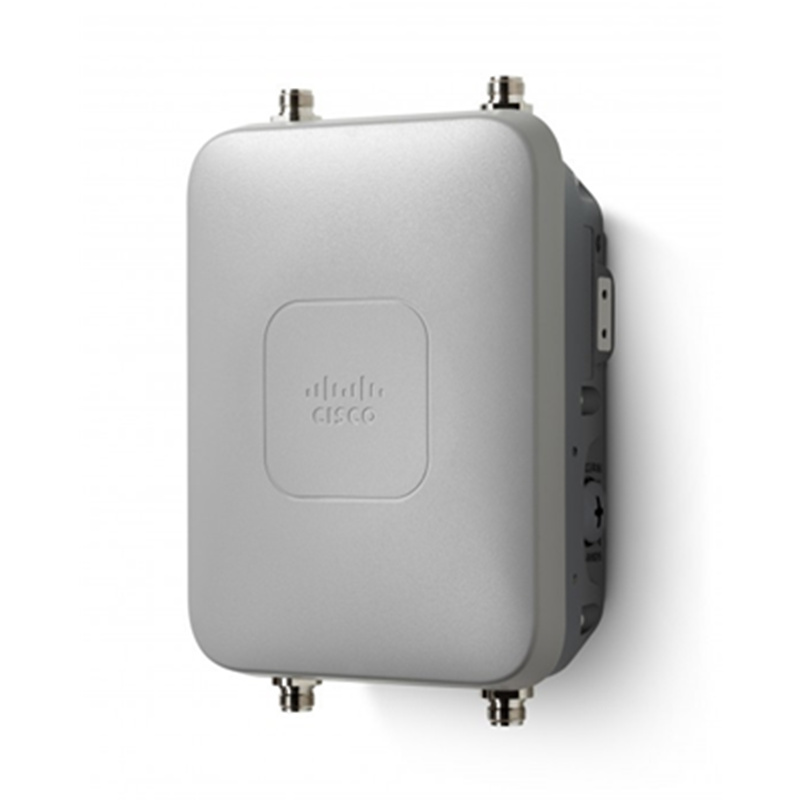

Name: AIR-CAP1532I-B-K9 - Cisco Aironet 1532I Outdoor Access Point
Detail:
802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain AIR-CAP1532I-B-K9
Availability: In Stock
Condition: New
GTIN: 0882658910104
icon
  • 0882658910104
  • 882658910104
Price: $142.83

AIR-CAP1532I-B-K9

802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain AIR-CAP1532I-B-K9
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
resources
reviews
overview
Overview

AIR-CAP1532I-B-K9 Overview

Cisco 1530I. Maximum data transfer rate: 1000 Mbit/s, Wi-Fi data rate (max): 300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, TKIP, WPA, WPA2, VPN support: IPsec. WAN connection: Ethernet (RJ-45). AC input voltage: 24 - 57 V, Power consumption (max): 30 W. Placement: Wall, Product colour: White, Certification: ANSI/IEEE C62.41 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 EN60950 FCC 15.247, 15.407 FCC...

Part NumberAIR-CAP1532I-B-K9
Description802.11n Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain
Features
  • 3x3 MIMO with 3 spatial streams (2.4 GHz) and 2x3 MIMO with 2 spatial streams (5 GHz)
  • 20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels
  • PHY data rates up to 300 Mbps
  • Packet aggregation: A-MPDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
Interfaces
  • WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • Management console port (RJ-45) with Reset button
  • DC power input
  • Multicolor LED
Dimensions(L x W x H)9 x 7 x 4 in. (23 x 17 x 10 cm) Volume: 179 cubic in. (2.9 liters)
Weight5.0 lb (2.3 kg)

Internal, Dual Band, 802.11n, Gigabit Ethernet, B Domain

  • 2.4 GHz
  • 5 GHz
  • Maximum data transfer rate: 1000 Mbit/s
  • IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • 802.1x RADIUS, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, TKIP, WPA, WPA2
  • Power over Ethernet (PoE)
  • Internal Integrated antenna

Summary Description

Cisco 1530I, 1000 Mbit/s, 300 Mbit/s, 10,100,1000 Mbit/s, 2.412 - 2.462, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.56, 5.68 - 5.72, 5.745 - 5.825 GHz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 31 channels

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-CAP1532I-B-K9?

Our lowest price for AIR-CAP1532I-B-K9 is $142.83 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications
Specification

AIR-CAP1532I-B-K9 Specification

AIR-CAP1532I-B-K9 Specification

Networking
TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate300 Mbps
Data Link ProtocolIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant StandardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, Wi-Fi CERTIFIED, X.509
Features2T3R MIMO technology, 3T3R MIMO technology, Cisco BandSelect technology, Cisco VideoStream technology, DFS support, MAC address filtering, Reset button, VPN passthrough
Network Transport ProtocolIPSec, L2TP
Wireless Protocol802.11a/b/g/n
Power Over Ethernet (PoE)PoE
Wi-Fi Bands2.4 GHz, 5 GHz
Interface Provided
Qty1
TypeManagement
Connector TypeRJ-45
WAN DMZWAN
Miscellaneous
Compliant StandardsANSI C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268, CAN/CSA C22.2 No. 60950, EN 300.328, EN 301.489.1, EN 301.489.17, EN 301.893, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60529 IP67, IEC 60950, MIL-STD 810F, OET 65 C, RSS-102, RSS-210, UL 60950
Authentication MethodX.509 certificates
Encryption AlgorithmAES, LEAP, PEAP, TKIP, TLS, TTLS, WPA, WPA2
Antenna
Antenna Form FactorInternal
Service
Support Details TypeLimited warranty
Support Details Full Contract Period1 year
Environmental Parameters
Min Operating Temperature-22 °F
Max Operating Temperature149 °F
Header
CompatibilityPC
ManufacturerCisco Systems
Packaged Quantity1
Product LineCisco Aironet
Model1532I
BrandCisco
Line Properties
Line Coding FormatCCK
Power Device
Power Consumption Operational30 Watt
Dimensions & Weight
Width9.1 in
Depth6.7 in
Height3.9 in
Weight5.07 lbs
Service & Support
Type1 year warranty
Chassis
Ruggedized DesignOutdoor
Optical Storage
TypeNone
