Mfr.part#:	AIR-AP3802E-BK910

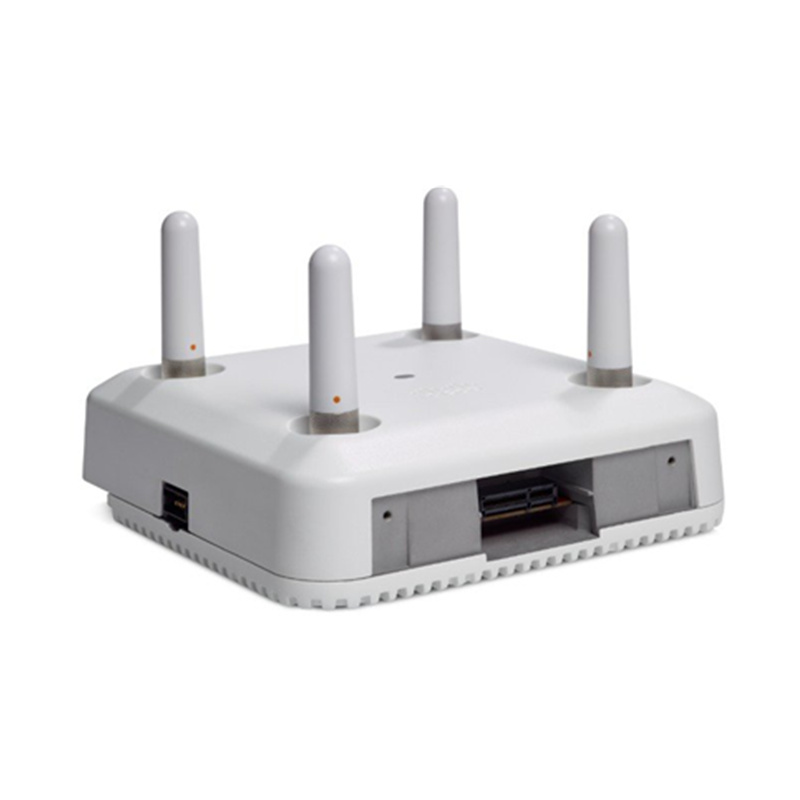

Name:	AIR-AP3802E-BK910 - Cisco Aironet 3802E Access Point
Detail:	802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, B Regulatory Domain AIR-AP3802E-BK910
Availability:	In Stock
Condition:	New

AIR-AP3802E-BK910

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

AIR-AP3802E-BK910 Overview

Cisco Aironet 3800e. Maximum data transfer rate: 2304 Mbit/s, Wi-Fi data rate (max): 2600 Mbit/s, Ethernet LAN data rates: 2500,5000,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2. Placement: Ceiling, Wall, Product colour: White, Certification: UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155. Antenna features: Detachable antenna. Flash memory: 256 MB, Internal memory: 1024 MB

Part Number	AIR-AP3802E-BK910
Description	802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, B Regulatory Domain
Features	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Interfaces	2 Ethernet ports 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) CAT 5e cabling Higher-quality 10GBASE-T (CAT 6/6a) cabling 100/1000BASE-T autosensing (RJ-45 - AUX port) Management console port (RJ-45)
Dimensions(W x L x H)	8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	4.6 lb (2.09 kg)

Support & Resources

[PDF] Cisco Indoor Access Points Comparison Chart

Indoor, 802.11a/b/g/n/ac, Challenging Environments, External Antennas, B Regulatory Domain, Eco-Pack (10 Pcs)

2.4 GHz

5 GHz

Maximum data transfer rate: 2304 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u

802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2

Power over Ethernet (PoE)

Detachable antenna

Summary Description

Cisco Aironet 3800e, 2304 Mbit/s, 2600 Mbit/s, 2500,5000,100,1000 Mbit/s, 2.412 - 2.462, 5.18 - 5.32, 5.5 - 5.72, 5.745 - 5.825 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i,..., 36 channels
