Mfr.part#:

AIR-AP1562I-B-K9

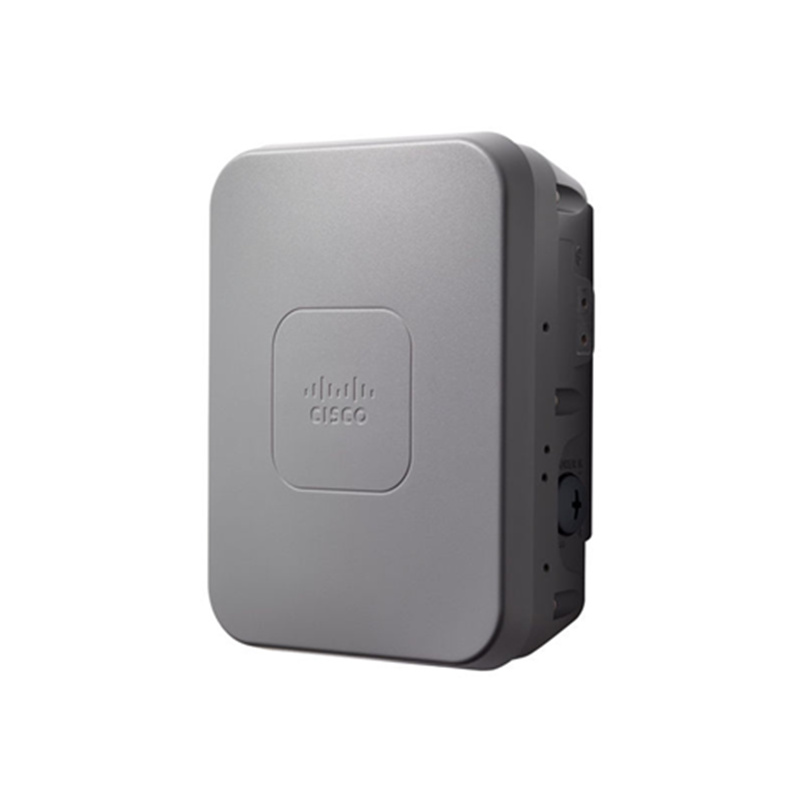

Name: AIR-AP1562I-B-K9 - Cisco Aironet 1562I Outdoor Access Point
Detail:
802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain AIR-AP1562I-B-K9
Availability: In Stock
Condition: New
GTIN: 0882658904332
icon
  • 0882658904332
  • 882658904332
Price: $534.91

AIR-AP1562I-B-K9

802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain AIR-AP1562I-B-K9
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
reviews
overview
Overview

AIR-AP1562I-B-K9 Overview

Cisco Aironet 1560. Maximum data transfer rate: 1300 Mbit/s, Wi-Fi data rate (max): 1300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, VPN support: IPsec, L2TP. WAN connection: Ethernet (RJ-45). Power consumption (typical): 32 W. Placement: Table, Wall, Product colour: Black, Certification: UL60950, 2nd Edition CAN/CSA-C22.2 No. 60950, 2nd Edition IEC 60950, 2nd Edition EN 60950, 2nd...

Part NumberAIR-AP1562I-B-K9
Description802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, B Regulatory Domain
Features
  • 3 x 3 MIMO with three spatial streams
  • Multi- and single-user MIMO
  • Maximal ratio combining (MRC)
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic-shift-diversity (CSD) support
Interfaces
  • WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in
  • SFP port (fiber or electrical)
  • Management console port (RJ-45)
  • Multicolor LED
  • DC power input
  • Reset button
Dimensions(L x W x H)9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight5.6 lb (2.5 kg)

Dual-band 802.11a/g/n/ac, Wave 2, internal semi-omni antennas

  • 2.4 GHz
  • 5 GHz
  • Maximum data transfer rate: 1300 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
  • 802.1x RADIUS, AES, EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2
  • Power over Ethernet (PoE)
  • Integrated antenna

Summary Description

Cisco Aironet 1560, 1300 Mbit/s, 1300 Mbit/s, 10,100,1000 Mbit/s, 2.412 - 2.462,5.18 - 5.24,5.26 - 5.32, 5.5 -5.72, 5.745 -5.825 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3,..., 36 channels

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-AP1562I-B-K9?

Our lowest price for AIR-AP1562I-B-K9 is $534.91 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications
Specification

AIR-AP1562I-B-K9 Specification

AIR-AP1562I-B-K9 Specification

Networking
TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate1.3 Gbps
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant StandardsIEEE 802.11, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Features3T3R MIMO technology, Auto-sensing per device, Cisco Flexible Antenna Port technology, CleanAir technology, ClientLink technology, Cyclic shift diversity (CSD), DFS support, MAC address filtering, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, VPN passthrough
Network Transport ProtocolIPSec, L2TP
Wireless Protocol802.11a/b/g/n/ac Wave 2
Wi-Fi Bands2.4 GHz, 5 GHz
Interface Provided
Qty1
WAN DMZWAN
TypeConsole
Connector TypeSFP (mini-GBIC)
Miscellaneous
Compliant StandardsANSI / IEEE 587 C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268.2003, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 328, EN 301 489-1, EN 301.893, EN 301489-17, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC OET Bulletin 65c, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-2, RSS-102, RSS-210, UL 60950-2
Authentication MethodExtensible Authentication Protocol (EAP), X.509 certificates
Encryption AlgorithmAES, LEAP, PEAP, TLS, TTLS, WPA, WPA2
Antenna
DirectivityOmni-directional
Antenna Form FactorInternal
Service
Support Details TypeLimited warranty
Support Details Full Contract Period1 year
Environmental Parameters
Min Operating Temperature-40 °F
Max Operating Temperature149 °F
Header
CompatibilityPC
ManufacturerCisco Systems
Packaged Quantity1
Product LineCisco Aironet
Model1562I
BrandCisco
Dimensions & Weight
Width6.7 in
Depth3.9 in
Height9 in
Weight5.51 lbs
Service & Support
Type1 year warranty
Chassis
Ruggedized DesignOutdoor
