HPE JX966A - Aruba AP365 Access Point
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
JX966A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.GOV CAGE Code : 23P86
overview
specifications
resources
faqs
reviews
JX966A Overview
Aruba AP-365 (RW) Outdoor AP JX966A
Overview
JX966A Overview
Aruba AP-365 (RW), 1000 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, DSSS, OFDM, 16-QAM, 64-QAM, 256-QAM
JX966A is the Aruba AP-365 wireless access point. Aruba Multi-functional 360 Series 802.11ac Wave 2 outdoor access points deliver cost-effective wireless connectivity to mobile and IoT devices in a wide range of outdoor and warehouse environments.
Quick Spec
Figure 1 shows the appearance of JX966A.
Model | JX966A |
Series | Aruba AP-365 |
AP type | outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n |
Antenna | Integrated Omni antennas (H and V polarized) - 2.7 dBi @ 2.4 GHz - 4.3 dBi @ 5.x GHz |
Supported data rates (Mbps) | - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n: 6.5 to 300 (MCS0 to MCS15) - 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2) |
Product Details

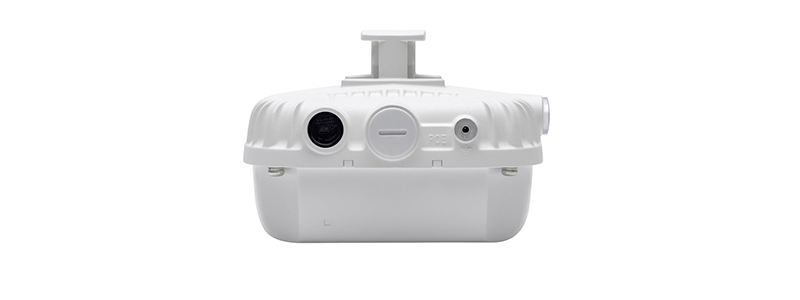

Figure 2 shows the front panel of JX966A.

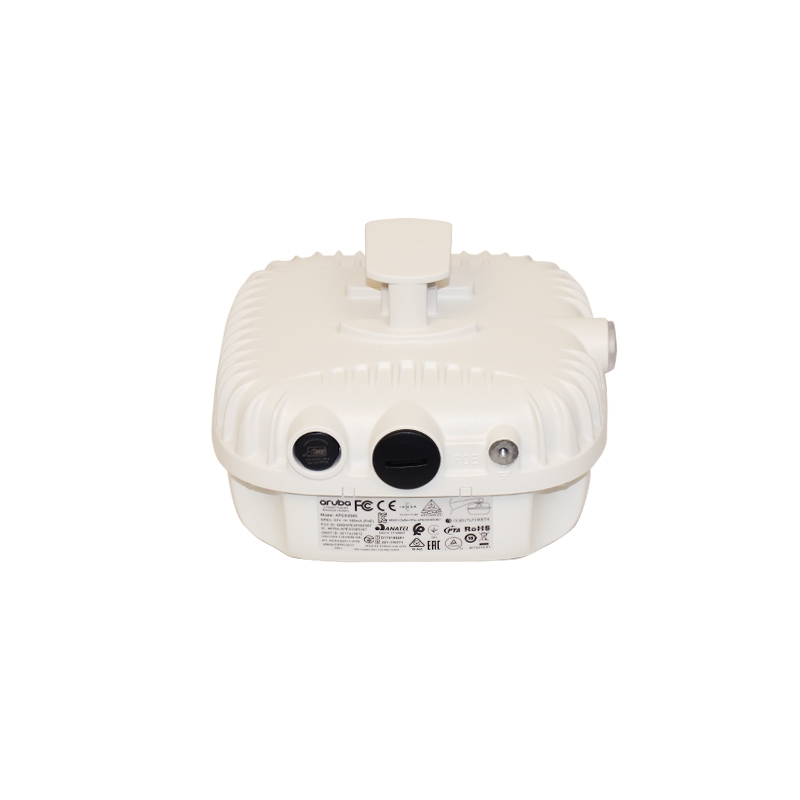

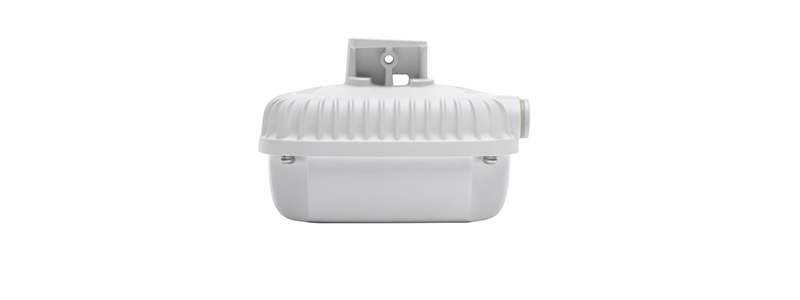

Figure 3 shows the back panel of JX966A.
Aruba AP-360 provides these key features:
• Deliver gigabit Wi-Fi to outdoor and extreme environments.
• 1.2 Gbps of maximum throughput
• WPA3 and Enhanced Open security
• Patented ClientMatch technology resolves sticky client issues and optimizes Wave 2 performance
• AI-powered AirMatch automates RF optimization
• IoT-ready with integrated Bluetooth Low Energy (BLE)
• Participates in Aruba’s Dynamic Segmentation solution
The Accessories
Mount Kit | |
AP-270-MNT-V1 270 Series Mt Kit | |
Power Adaptor | |
JW627A | PD-3501G-AC 1p GE 802.3af Midspan |
Compare to Similar Items
Model | R2H28A | JX966A |
Series | Aruba AP-505 | Aruba AP-365 |
AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO | outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n |
Antenna | 2 Internal Omni-directional 5.7 DBi Antenna | Integrated Omni antennas (H and V polarized) - 2.7 dBi @ 2.4 GHz - 4.3 dBi @ 5.x GHz |
Supported data rates (Mbps) | • 802.11b: 1, 2, 5.5, 11 • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) | - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n: 6.5 to 300 (MCS0 to MCS15) - 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2) |
Low-cost 802.11ac Wave 2 for outdoor enterprise environments
- 2.4 GHz
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1000 Mbit/s
- IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
- Power over Ethernet (PoE)
- Integrated antenna
Summary Description
Aruba AP-365 (RW), 1000 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, DSSS, OFDM, 16-QAM, 64-QAM, 256-QAM
Need help with JX966A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JX966A Specification
JX966A Specification | |
Series | Aruba AP-365 |
AP type | outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n |
Antenna | Integrated Omni antennas (H and V polarized) - 2.7 dBi @ 2.4 GHz - 4.3 dBi @ 5.x GHz |
Supported data rates (Mbps) | - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n: 6.5 to 300 (MCS0 to MCS15) - 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2) |
Supported frequency bands (country-specific restrictions apply) | 2.4000 GHz to 2.4835 GHz 5.150 GHz to 5.250 GHz 5.250 GHz to 5.350 GHz 5.470 GHz to 5.725 GHz 5.725 GHz to 5.875 GHz |
Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11n/ac: 2x2 MU-MIMO with up to two spatial streams |
Other Interfaces | One 10/100/1000BASE-T Ethernet network interfaces (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 802.3af PoE Serial console interface (micro USB) Reset button |
Dimensions | 165mm (W) x 165mm (D) x 110mm (H), 6.5" (W) x 6.5" (D) 4.3" (H) |
Resources
Documents
Frequently Asked Questions
What is the primary use case for the Aruba AP-365 (JX966A) access point? +
The Aruba AP-365 is designed specifically for harsh outdoor environments, making it ideal for deployments in stadiums, warehouses, shipping docks, or campus outdoor areas. Its ruggedized enclosure ensures consistent, high-performance Wi-Fi connectivity in locations where extreme temperatures, moisture, or dust would degrade standard indoor access points.
Does the JX966A support dual-band operations for improved network efficiency? +
Yes, this access point features dual-radio capability, supporting both 2.4 GHz and 5 GHz frequency bands. This allows the AP-365 to balance client traffic effectively, ensuring reliable throughput for legacy devices while providing high-speed, low-interference performance for modern 802.11ac wave 2 capable wireless clients in outdoor settings.
How do I manage the Aruba AP-365 within an existing network infrastructure? +
You can manage the JX966A through Aruba’s centralized mobility controllers or deploy it in Instant mode, which provides a controller-less configuration approach. This flexibility allows IT administrators to choose the management strategy that best fits their site requirements and existing controller architecture without sacrificing visibility or control.
What are the physical port specifications for this outdoor AP? +
The Aruba AP-365 (JX966A) is equipped with one 10/100/1000BASE-T Ethernet port with auto-sensing link speed and MDI/MDX support. This port is compliant with 802.3at Power over Ethernet (PoE) standards, allowing for simplified power delivery over a single Cat6 cable, which is critical for simplifying deployments in challenging outdoor locations.
What type of environmental protection does the JX966A chassis provide? +
The AP-365 features an IP66/67-rated enclosure. This indicates a high level of protection against dust ingress and resistance to powerful water jets and temporary immersion. These specifications make the device highly reliable for deployments in exposed areas where exposure to rain, wind, and debris is a constant factor.
Does the JX966A support advanced radio management features like ClientMatch? +
Absolutely. This model utilizes Aruba’s patented ClientMatch technology to continuously gather session performance metrics from devices. By intelligently steering clients to the best available radio or AP based on signal strength and congestion, the AP-365 ensures an optimized, high-quality user experience throughout the entire outdoor coverage area.
Are there specific mounting accessories required for the JX966A? +
While the unit is built for versatile installation, the specific mounting hardware depends on your infrastructure requirements. Aruba offers a variety of pole-mount and wall-mount kits designed to secure the AP-365 safely against wind load and structural movement. It is recommended to verify your mounting surface before deployment to ensure you select the appropriate bracket kit.
What is the maximum throughput capacity of the Aruba AP-365? +
The AP-365 is an 802.11ac Wave 2 device, capable of delivering a combined aggregate throughput that satisfies high-density outdoor requirements. While actual performance varies based on channel width, interference, and client density, the 3x3 MIMO architecture provides substantial bandwidth to support simultaneous high-speed connections for multiple wireless users in outdoor public or industrial spaces.
Can I obtain a bulk quote for the JX966A for my large-scale outdoor project? +
Yes, BuyRouterSwitch.com specializes in supporting enterprise-scale requirements. If you are planning a large deployment and need multiple units, please contact our sales team directly through our website. We provide competitive bulk pricing options and dedicated support to ensure your procurement process for Aruba hardware is seamless and aligned with your project budget.
Why should I choose BuyRouterSwitch.com for my Aruba hardware procurement? +
We are a trusted supplier of authentic enterprise-grade networking equipment. When you purchase the JX966A from us, you receive genuine, reliable hardware sourced through legitimate channels. Our streamlined ordering system and focus on enterprise clients ensure that your network infrastructure gets the authentic Aruba components needed for long-term reliability and performance in your production environment.
