JL384A Overview

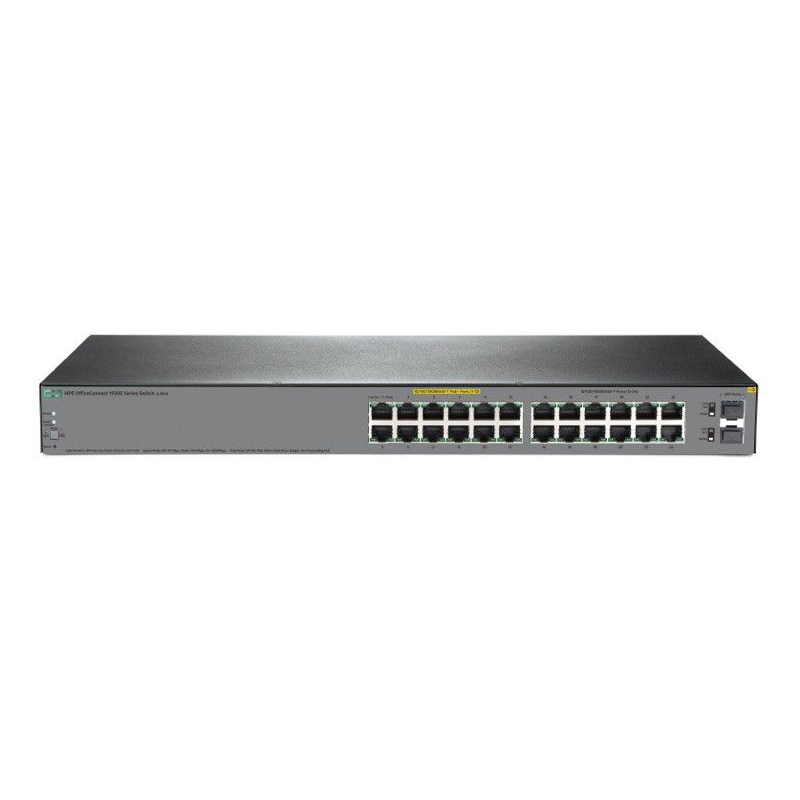

HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch JL384A
Overview
JL384A Overview
HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
The JL384A has 24x 10/100/1000 ports as well as 2 SFP ports. 12 of the ports support PoE+/PoE with a Power over Ethernet budget of 185 Watts.
Quick Spec
Product Number | JL384A |
Product Description | HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch |
Ports | (12) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports |
Throughput | up to 38.6 Mpps |
Routing/switching capacity | 52 Gbps |
Product dimensions (H x W x D) | 17.42 x 9.69 x 1.73 in |
The Accessories
Product number | Description |
J9054D | Aruba 100M SFP LC FX 2km MMF XCVR |
J4858D | Aruba 1G SFP LC SX 500m MMF XCVR |
J4859D | Aruba 1G SFP LC LX 10km SMF XCVR |
J8177D | Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
Compare to Similar Items
Product Number | JL386A | JL384A |
Product Description | HPE OfficeConnect 1920S 48G 4SFP PPoE+ 370W Switch | HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch |
Ports | (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (24) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports | (12) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports |
Throughput | up to 77.3 Mpps | up to 38.6 Mpps |
Routing/switching capacity | 104 Gbps | 52 Gbps |
OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 52 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
Summary Description
HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Need help with JL384A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JL384A Specification
JL384A Specification | |
Product Description | HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch |
PoE Capability | 185W PoE+ |
Product Dimensions (metric) | 44.25 x 24.61 x 4.39 cm |
Power Consumption Description | 207.9W (maximum), 19W (idle) |
Product Differentiator (long) | Advanced smart managed 24-port Gigabit PoE+ switch from our most popular switch series for small businesses. This model has 24x 10/100/1000 ports as well as 2 SFP ports. 12 of the ports support PoE+/PoE with a Power over Ethernet budget of 185 Watts. |
External I/O Ports | (12) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports |
Routing/switching Capacity | 52 Gbps |
Management Features | Web browser SNMP IEEE 802.3 Ethernet mib |
Throughput | up to 38.6 Mpps |
Input Voltage | 207.9W (maximum), 19W (idle) |
Product Dimensions (imperial) | 17.42 x 9.69 x 1.73 in |
Resources
Documents
Frequently Asked Questions
What is the primary power budget for the HPE OfficeConnect 1920S JL384A PoE+ switch? +
The HPE JL384A provides a total Power over Ethernet budget of 185 Watts. This is designed to support the power requirements of connected edge devices like VoIP phones, wireless access points, and security cameras across the 24 Gigabit PoE+ ports, ensuring reliable performance for standard business deployments without needing additional injectors.
Does the HPE JL384A support fiber connectivity for uplink applications? +
Yes, this model includes two dedicated SFP ports for fiber uplinks. These ports allow you to connect the switch to your core network or other distribution switches over longer distances using fiber transceivers, providing the necessary bandwidth flexibility to prevent bottlenecks in your local area network infrastructure.
Is the HPE OfficeConnect 1920S JL384A suitable for Layer 3 static routing? +
This switch supports Layer 3 static routing with up to 32 routes. This feature enables you to segment your network into smaller subnets, improving security and performance by localizing traffic. It is an excellent choice for growing small to medium-sized businesses looking to optimize their internal network traffic flow efficiently.
How do I manage the configuration of the HPE JL384A switch? +
The JL384A is managed through an intuitive, web-based graphical user interface. This web-managed platform is designed for simplicity, allowing IT administrators to easily configure VLANs, prioritize traffic with Quality of Service (QoS), and monitor port status without requiring advanced command-line expertise or complex network management software.
Can I deploy the JL384A switch in a standard server rack? +
Absolutely. The HPE JL384A is designed with a rack-mountable form factor. It comes equipped with the necessary hardware to fit into a standard 19-inch equipment rack, making it a space-efficient solution for network closets and server rooms where organized cable management and hardware consolidation are priorities.
What kind of traffic prioritization features are available on this 1920S model? +
The switch offers robust Quality of Service (QoS) features, including IEEE 802.1p prioritization and Differentiated Services Code Point (DSCP). These settings allow you to identify and prioritize latency-sensitive traffic, such as voice and video data, ensuring high-quality communication and clear media streaming even during peak network congestion periods.
Is the HPE JL384A compatible with existing VLAN configurations? +
The switch supports IEEE 802.1Q VLAN tagging, which is fully compatible with standard enterprise networking environments. This allows you to create virtual networks to segregate traffic for security, departmental organization, or guest access, ensuring your network remains structured and secure as your organization scales its operations.
Does the JL384A support energy-efficient networking standards? +
Yes, this unit supports IEEE 802.3az Energy Efficient Ethernet. This standard reduces power consumption during periods of low data activity by putting ports into a sleep mode, which helps businesses lower their overall operational costs and thermal output in the data center or office environment.
How can I obtain a bulk quote for multiple HPE JL384A units? +
If you are planning a large-scale deployment and require multiple HPE JL384A units, our sales team at BuyRouterSwitch.com is ready to assist. Please contact us directly through our website to discuss your project requirements, and we will provide a customized bulk quote tailored to your specific quantity needs and budgetary constraints.
Why should I purchase the HPE JL384A from BuyRouterSwitch.com? +
BuyRouterSwitch.com is a trusted source for high-quality enterprise networking hardware. We specialize in providing authentic HPE equipment, ensuring that your infrastructure is built with reliable, genuine components. By ordering through our secure platform, you benefit from our streamlined procurement process and dedicated support from our sales experts who understand the complexities of modern network requirements.
