Extralink Outdoor PoE switch Minos 8x RJ45 1000Mbps PoE, 2x SFP, 200W, L2, active cooling, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
Extralink Outdoor PoE switch Minos 8x RJ45 1000Mbps PoE, 2x SFP, 200W, L2, active cooling
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com
overview
specifications
faqs
reviews
EX.32794 Overview

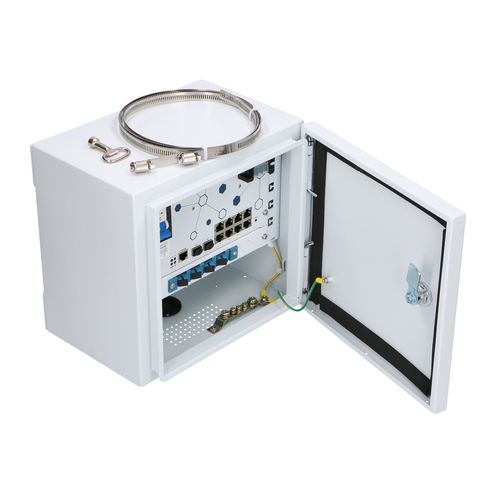

Extralink Minos - the ideal solution for an outdoor network
If you need a reliable and efficient network connection outdoors, the Extralink Minos Managed L2 Switch is the perfect choice for you. It includes 8 10/100/1000Mbps ports with PoE (downlink) and 2 1000Mbps SFP (uplink) ports to provide you with a stable and fast connection. Extralink Atlas is the ideal solution for monitoring buildings, roads, forests and extending network coverage. Get a stable and reliable network connection outdoors with Extralink Minos.
Gigabit ports with PoE power supply
With 8 10/100/1000Mbps PoE-enabled ports and 2 1000Mbps SFP uplink ports, Extralink Minos provides a stable and fast network connection outdoors. The power of 2 ports of 90W and 6 ports of 30W each, as well as the maximum power of the entire device of up to 200W, make it possible to connect devices that require PoE power.
VLAN and PoE Auto-check
The VLAN mode provides port isolation from 1 to 8, allowing secure and stable communication only with uplink ports. The Extralink Atlas is also equipped with a PoE Auto-check function, which will check if connected devices are working properly and restart them if there is no response.
High level of surge and weather protection
The safety of your network is guaranteed by overvoltage protection of 6KV and ESD protection of 6KV (contact) and ESD 8KV (air). The device is also waterproof (IP55 rating) and protected against corrosion, so it can be used outdoors for a long time.
Ideal switch for outdoor deployments
Extralink Minos is the perfect solution for those who need a reliable and stable network connection outdoors, in the field or in other places where PoE-powered network connectivity is required. Extralink Minos allows you to easily and cost-effectively deploy network solutions in places where access to power and stable and fast network connectivity is required. It will be perfect for such deployments as monitoring of buildings, roads, forests, production halls, parks and for extending network coverage.
Extralink Minos | Outdoor PoE switch | 8x RJ45 1000Mbps PoE, 2x SFP, 200W, L2, active cooling
- PoE - with ports of 6x 30W and 2x 90W, and the maximum power of the whole device up to 200W, you can connect devices that require PoE power without any worries
- Surge and ESD protection - surge protection of 6KV and ESD protection of 6KV contact and 8KV air ESD will ensure the safety of your network in any situation
- Weatherproof enclosure - the device is waterproof (IP55 rating) and protected against corrosion, so it can be used outdoors for a long time
- PoE Auto-check - the PoE Auto-check function will check if the connected devices are working properly and restart them if there is no response
- Management - supports L2 layer management such as QoS, VLAN, MSTP, Multi-broadcast, port management and PoE management
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- Cat5e, Cat6
- MAC address table: 16384 entries Switching capacity: 20 Gbit/s
- AC Power supply included Power over Ethernet (PoE)
Summary Description
Extralink Outdoor PoE switch Minos 8x RJ45 1000Mbps PoE, 2x SFP, 200W, L2, active cooling, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Need help with EX.32794?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
EX.32794 Specifications
Overview
Manufacturer:
Extralink
Stock:
In Stock.
Stock updated on:
2024-09-17
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Fiber optic connector
LC
Network
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
10G support
No
Cable types supported
Cat5e, Cat6
Ethernet LAN data rates
10,100,1000 Mbit/s
Active link detection
Yes
Data transmission
Switching capacity
20 Gbit/s
Throughput
14.88 Mpps
MAC address table
16384 entries
Security
DHCP features
DHCP client, DHCP relay, DHCP server
IGMP snooping
Yes
MAC address filtering
Yes
Loop protection
Yes
Design
Rack mounting
No
Stackable
No
Product colour
White
Housing material
Metal
LED indicators
Activity, Link, PoE
Redundant fans support
Yes
Number of fans
1 fan(s)
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE
Power over Ethernet (PoE) power per port
30 W
Operational conditions
Operating temperature (T-T)
-20 - 65 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
200 mm
Depth
180 mm
Height
260 mm
Weight
8 kg
Packaging data
Manual
Yes
Package type
Box
Frequently Asked Questions
What are the primary networking interfaces available on the Extralink Minos PoE switch? +
The Extralink Minos features 8 Gigabit RJ45 ports that support Power over Ethernet (PoE) for connected devices. Additionally, it provides 2 SFP slots, allowing for high-speed fiber optic uplinks. This combination of copper and fiber ports makes it an excellent choice for extending network reach across outdoor environments while maintaining high throughput.
How much total PoE power budget does the Extralink Minos 8x RJ45 switch provide? +
This unit offers a robust 200W total PoE power budget. This capacity is sufficient to power multiple high-draw outdoor devices such as PTZ IP cameras, wireless access points, or VoIP phones simultaneously. Users should ensure the sum of the power consumption for all connected devices does not exceed this 200W limit for stable operation.
Is the Extralink Minos suitable for installation in harsh outdoor environments? +
Yes, the Minos switch is specifically engineered for outdoor deployment. It includes an active cooling system to manage internal temperatures efficiently, ensuring high reliability when exposed to varying environmental conditions. Its rugged construction protects internal components, making it a dependable choice for surveillance and outdoor networking projects where consistent performance is critical.
Does this Extralink switch support Layer 2 management features? +
The device operates as a Managed Layer 2 switch, offering essential traffic control capabilities. Administrators can utilize features like VLAN tagging, port mirroring, and link aggregation to optimize network performance and segmentation. These management tools provide the granular control needed to maintain a secure and organized network infrastructure in professional deployments.
What is the maximum data transfer rate for the RJ45 ports on this switch? +
Each of the 8 RJ45 ports supports Gigabit Ethernet speeds, providing up to 1000Mbps of bandwidth per port. This ensures high-speed data transmission for bandwidth-intensive applications like high-definition video streaming or large file transfers, preventing bottlenecks within your local network architecture.
Can I use the SFP ports for long-distance connectivity? +
The 2 SFP slots allow for the integration of standard SFP transceiver modules, enabling fiber optic connections. This is ideal for connecting distant network segments that exceed the typical 100-meter limitation of copper Ethernet cabling. By using the appropriate fiber optics, you can extend your network backbone across large campuses or industrial sites with minimal signal loss.
How is the thermal performance managed in the Extralink Minos switch? +
Thermal management is handled by an active cooling system integrated directly into the chassis. This active fan configuration continuously cycles air through the device, effectively dissipating heat generated by the PoE components and internal circuitry. This design helps maintain optimal operating temperatures, which extends the longevity of the hardware during continuous outdoor operation.
What type of devices can be powered by the PoE ports on this switch? +
You can connect any standard PoE-compliant device, including IP security cameras, outdoor Wi-Fi access points, and remote IoT sensors. Because the switch adheres to standard PoE protocols, it automatically negotiates power requirements with the connected equipment, providing the correct amount of voltage and current to ensure safe and efficient operation for your peripheral devices.
