C1118-8P Overview
ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL C1118-8P
Overview
C1118-8P Overview

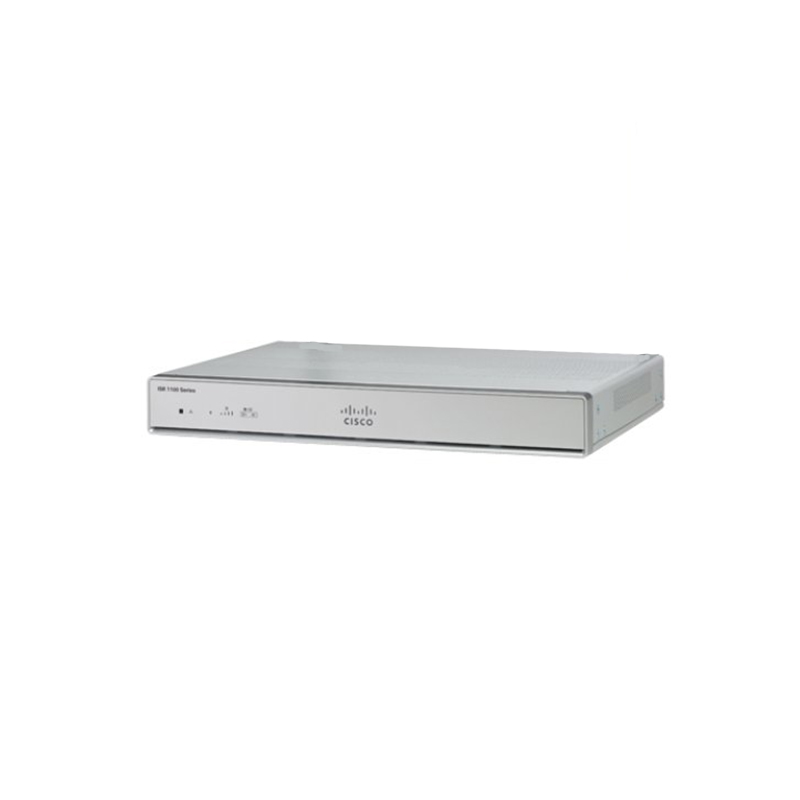

Cisco C1118-8P, Ethernet LAN, Grey, Tabletop router
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1118-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL.
Quick Spec
Model | C1118-8P |
GE | N/A |
GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 G.SHDSL |
LTE Advanced (CAT6) | N/A |
802.11ac | N/A |
GE | 4 |
PoE | 2 |
PoE+ | 1 |
Integrated USB 3.0 AUX/console | Yes |
Pluggable | N/A |
Product Details
Business need | Features/description |
Lightweight, compact size with low power consumption | ●Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
High performance to run concurrent services | ●High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
High availability and business continuity | ● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
Risk mitigation with multilevel security | ● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow |
Unified control of wired and wireless networks from a common console for streamlined operations | ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
Remote configuration and management to keep local IT staff lean | ● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069. |
Performance ● Throughput ● Service reliability | ● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints. |
Supported Products
Models | Description |
C1-SL-1100-8P-APP | AppX Foundation License for Cisco ISR 1100 8P Series |
SL-1100-8P-SEC | Security License for Cisco ISR 1100 8P Series |
SL-1100-8P-SECNPE | NPE Security License for Cisco ISR 1100 8P Series |
C1-SL-1100-8P-SEC | Security Foundation License for Cisco ISR 1100 8P Series |
FL-VPERF-8P-200 | IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series |
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. | |
GE SFP, LC connector LX/LH transceiver; with DOM. | |
GE SFP, LC connector SX transceiver; with DOM. | |
1000BASE-ZX SFP; with DOM. | |
100BASE-ZX SFP (80km). | |
1000BASE-BX SFP, 1490NM. | |
1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Model | C1118-8P | |
WAN GE | N/A | N/A |
WAN GE/SFP combo | 1 | 1 |
ADSL2/VDSL2+ | 1 G.FAST | 1 G.SHDSL |
LTE Advanced (CAT6) | 1 EMEAR & North America | N/A |
802.11ac | N/A | N/A |
LAN GE | 8 | 4 |
PoE | 4 | 2 |
PoE+ | 2 | 1 |
Integrated USB 3.0 AUX/console | Yes | Yes |
ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL
- Tabletop router Grey
- Gigabit Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 8
- USB port
- Quality of Service (QoS) support
Summary Description
Cisco C1118-8P, Ethernet LAN, Grey, Tabletop router
Need help with C1118-8P?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C1118-8P Specification
C1118-8P Specification | |
GE | C1118-8P |
GE/SFP combo | N/A |
ADSL2/VDSL2+ | 1 |
LTE Advanced (CAT6) | 1 G.SHDSL |
802.11ac | N/A |
GE | N/A |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | 1 |
Pluggable | Yes |
Memory (default and maximum) | DRAM: 4 GB, Flash: 4 GB |
Console | · Micro USB console (USB 3.0). |
Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
Standard safety certifications | · UL 60950-1.and EN 60950-1. · CAN/CSA C22.2 No. 60950-1. · CB to IEC 60950-1, 2nd edition with all group differences and national deviations. |
EMC emissions | · EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. |
EMC immunity | · EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386. |
Radio immunity | · EN301 489-1, EN 301 489-7, and EN301 489-24. |
Cellular radio | · EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13. |
Environmental operating range | · Nonoperating temperature: -4° to 149°F (-0° to 65°C). · Nonoperating humidity: 5% to 95% relative humidity (noncondensing). · Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). · Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). · Operating humidity: 10% to 85% relative humidity (noncondensing). · Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
Resources
Frequently Asked Questions
What is the primary connectivity use case for the Cisco C1118-8P router? +
The C1118-8P is designed for branch office environments requiring high-performance routing with G.SHDSL access. It excels in scenarios where businesses need to integrate legacy copper-based WAN connectivity alongside standard Gigabit Ethernet interfaces, providing a versatile edge solution that balances modern fiber-ready capabilities with reliable, traditional broadband support.
How many ports are available for LAN connectivity on the C1118-8P? +
This model features 8 integrated Gigabit Ethernet ports, providing ample density for connecting local office devices like access points, IP phones, and desktop workstations directly to the router. This built-in switching capability eliminates the immediate need for an additional access switch in smaller branch deployments, streamlining your hardware footprint.
Does the C1118-8P support dual WAN configurations? +
Yes, this router includes dual Gigabit Ethernet WAN ports. This allows network administrators to configure active-active or active-standby load balancing for enhanced reliability. By leveraging both WAN links, businesses can ensure continuous connectivity for critical branch services even if one service provider experiences an outage.
Is the C1118-8P suitable for high-speed fiber deployments? +
While the C1118-8P includes G.SHDSL for copper-based WAN, its dual Gigabit Ethernet ports are perfectly suited for high-speed fiber connections. This makes the router an excellent choice for businesses transitioning from legacy copper infrastructure to modern fiber-optic services, as it accommodates both technologies within a single, unified enterprise-grade platform.
What kind of performance can I expect from the ISR 1100 series in a branch setting? +
The ISR 1100 series is engineered to provide high-performance throughput, supporting secure branch office traffic, encrypted VPN tunnels, and advanced quality-of-service (QoS) features. It is built to handle the demanding requirements of modern enterprise applications, ensuring that business-critical data flows efficiently across your wide-area network without performance degradation.
How do I manage the C1118-8P router within my network? +
The C1118-8P supports robust management capabilities typical of the Cisco ISR family. Administrators can utilize Cisco IOS XE software, which allows for traditional command-line interface management, as well as modern, centralized software-defined WAN (SD-WAN) orchestration tools. This flexibility ensures you can deploy and monitor your routers using the management platform that best fits your existing network operations.
Is the C1118-8P compatible with existing Cisco ISR infrastructure? +
Yes, it is designed for seamless integration into existing Cisco ecosystems. Because it runs on the standardized Cisco IOS XE software, it supports consistent configuration protocols, security features, and monitoring scripts used across the broader ISR portfolio. This compatibility simplifies the task for IT teams maintaining mixed fleets of Cisco branch hardware.
Does the C1118-8P support Power over Ethernet (PoE)? +
The C1118-8P provides PoE capabilities to power connected peripheral devices directly through the LAN ports. This feature simplifies cabling and reduces the need for external power injectors, making it an ideal solution for powering VoIP handsets or Wi-Fi access points in office spaces where power outlets may be limited or difficult to reach.
Can I request a bulk quote for multiple C1118-8P units from BuyRouterSwitch.com? +
Absolutely. If you are planning a large-scale deployment or a fleet refresh, we provide competitive bulk pricing tailored to your quantity requirements. Simply contact our sales team through the Request a Quote feature on our product page to receive a customized pricing structure that helps you maximize your IT procurement budget.
Why should I purchase my Cisco hardware from BuyRouterSwitch.com? +
At BuyRouterSwitch.com, we specialize in high-quality enterprise networking equipment. By sourcing from us, you ensure you are receiving authentic Cisco hardware backed by our extensive supply chain expertise. We focus on providing a secure, streamlined ordering process, making us the preferred partner for procurement managers looking for reliable, scalable solutions for their branch network expansion.
