ASR-9001 Overview

Cisco ASR 9001 Chassis ASR-9001 ASR 9001 Chassis ASR-9001

Overview

Cisco ASR 9001, 5 - 40 °C, -5 - 55 °C, 10 - 85%, 5 - 90%, UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal..., 442 mm

The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor. Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis, ASR-9001 has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.

Quick Specs

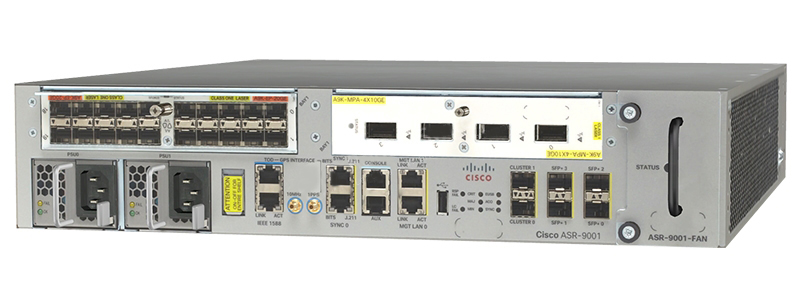

Figure 1 shows the appearance of ASR 9001 router. ASR-9001 is the chassis without these installed modules.

Model	ASR 9001
Slots	Fixed 4x10GE 2 Modular Port Adapters
Rack Size	2 RU
Max Capacity	240 Gbps
Size (H x W x D)	3.5 in. x 17.5 in. x 18.5 in.
Power	AC or DC 425 W (typical), 525 W (max)
Fan	1 fan tray
Airflow	Side to Side
RSP / RP	Integrated
Fabric Architecture	Integrated
Software	IOS XR

Product Details

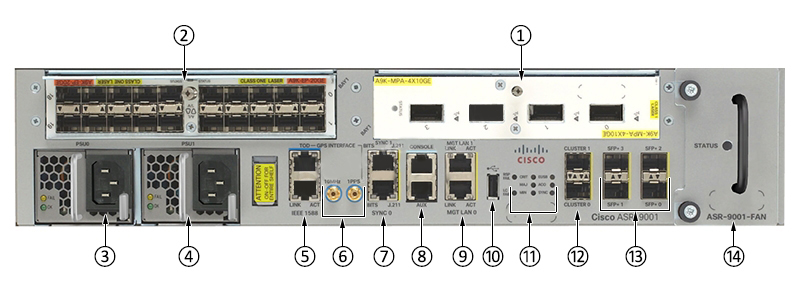

Figure 2 shows the front panel of ASR-9001 with installed modules. These modules must be purchased separately.

Notes:

①	4 x 10 GE Modular Port Adapter	⑧	CONSOLE and AUX ports
②	20 x GE Modular Port Adapter	⑨	Management LAN ports
③	Power Supply Slot	⑩	External USB port
④	Power Supply Slot	⑪	Eight discrete LED indicators
⑤	Service LAN and ToD ports	⑫	CLUSTER ports
⑥	10MHz and 1PPS ports	⑬	Fixed SFP+ ports
⑦	SYNC (BITS/J.211) ports	⑭	Fan Tray Slot

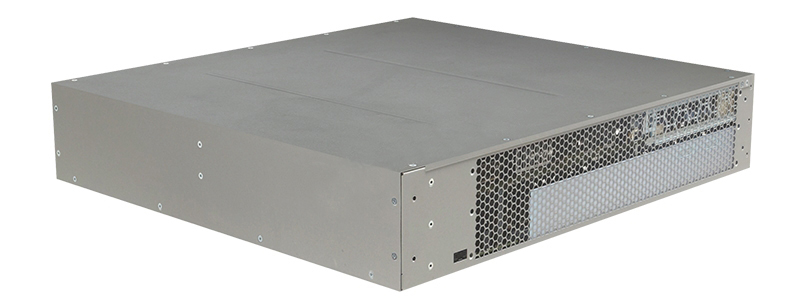

Figure 3 shows the back view of ASR 9001 router.

Configuration

Model	Description
A9K-MPA-20X1GE	Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-20X1GE ASR 9000 20-port 1GE Modular Port Adapter
A9K-MPA-4X10GE	Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-4X10GE ASR 9000 4-port 10GE Modular Port Adapter
A9K-750W-AC	Cisco ASR 9001 Power Supply A9K-750W-AC ASR 9000 Series 750W AC Power Supply for ASR-9001 Spare
A9K-750W-DC	Cisco ASR 9001 Power Supply A9K-750W-DC ASR 9000 750W DC Power Supply for ASR-9001 Spare
ASR-9001-FAN	Cisco ASR 9001 Fan ASR-9001-FAN ASR 9001 Fan Tray Spare
A9K-9001-AIP-LIC=	Cisco ASR 9001 License A9K-9001-AIP-LIC ASR 9001 AIP License
A9K-9001-OPT-LIC=	Cisco ASR 9001 License A9K-9001-OPT-LIC ASR 9001 Advanced Optical License
ASR-9001-2P-KIT	Cisco ASR 9001 Mounting Kit ASR-9001-2P-KIT ASR 9001 2 Post Mounting Kit
SFP-10G-SR	10GBASE-SR SFP Module
SFP-10G-ZR	10GBase-ZR Optical Transceiver, SFP+,10G,Single-mode Module(1550nm,80km,LC)
A9K-MPA-4X10GE	Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-4X10GE ASR 9000 4-port 10GE Modular Port Adapter
A9K-MPA-20X1GE	Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-20X1GE ASR 9000 20-port 1GE Modular Port Adapter

Compare to Similar Item

Model	ASR-9001	ASR-9006-AC-V2
Type	Cisco ASR-9001 Chassis	Cisco ASR-9006 AC Chassis PEM Version 2
Slots	2 Modular port adapters	4 Line Cards 2 RSPs
Rack Size	2 RU	10 RU

Summary Description

Cisco ASR 9001, Grey

Need help with ASR-9001?

Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com

specifications

Specification

ASR-9001 Specification

ASR-9001 Specifications
Type	Cisco ASR 9001 Chassis
Integrated interfaces	4 x 10 GE SFP+
Modular port adapters	20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE
Redundancy	Power supply redundancy
Power supply part number	● A9K-750W-AC ● A9K-750W-DC
Physical specifications	● Height: 3.472 inches (88.2 mm) ● Width: 17.42 inches (442 mm) ● Depth: 18.5 inches (470 mm) ● Weight of chassis: 30.2032 lbs (13.7 kg) ● Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)
Power inputs	● Worldwide ranging AC (90-265V; 50-60 Hz) ● Worldwide ranging DC (-40V to -72V)
Power consumption	425 watts typical, 525 watts maximum
Environmental conditions	● Operating temperature: 32 to 104°F (0 to 40°C) ● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Regulatory compliance
Environmental Specifications
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (-5 to 55ºC)
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90% Note: Not to exceed 0.024 kg water or dry air
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg water or dry air
Operating altitude	-1800m
Air flow	Side to side
Compliance
Network Equipment Building Standards (NEBS)	Cisco ASR 9001 is designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection ● VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9001 is designed to meet (qualification in progress): ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9001 is designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker ● EN 50121-4: Railway EMC
Immunity	Cisco ASR 9001 is designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN 50121-4: Railway EMC
Safety	Cisco ASR 9001 is designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety
