N2K-C2232TM-E Overview
Nexus 2000 Series Chassis, Nexus 2232TM-E 10GBASE-T Fabric Extender, 2PS, 1 Fan Module, 32x1/10GBase-T + 8x10GE Module (req SFP+), choice of airflow and power supply N2K-C2232TM-E
Overview
N2K-C2232TM-E Overview
Cisco Nexus 2232TM-E, Full duplex
N2K-C2232TM-E is a Cisco Nexus 2000 Platform Chassis, offering 2 power supply, 1 Fan Modules, 32x1/10GBase-T + 8x10GE Module (req SFP+), and choice of airflow. Cisco Nexus 2000 Series Fabric Extenders comprise a category of data center products designed to simplify data center access architecture and operations. Nexus 2000 Series Fabric Extenders behave like remote line cards for a parent Cisco Nexus switch. The fabric extenders are essentially extensions of the parent Cisco Nexus switch fabric, with the fabric extenders and the parent switch together forming a distributed modular system. This architecture enables physical topologies with the flexibility and benefits of both top-of-rack (ToR) and end-of-row (EoR) deployments
Quick Specs

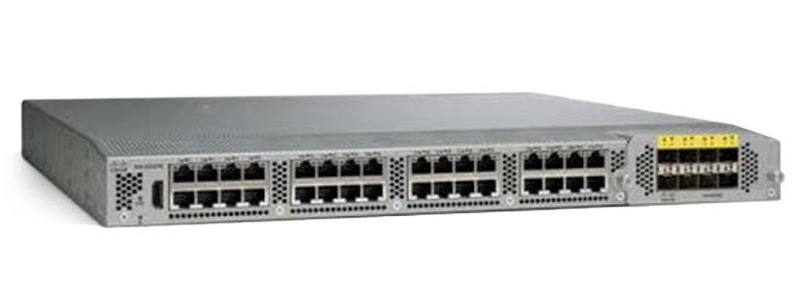

Figure 1 shows the appearance of the N2K-C2232TM-E.
Product Code | N2K-C2232TM-E |
Fabric extender host interfaces | 32 |
Fabric extender host interface type | 32 × 1/10GBASE-T ports: RJ‑45 connectors |
Fabric extender fabric interfaces | Uplink module: 8 x 10 Gigabit Ethernet SFP+ included |
Fabric speed | 80 Gbps in each direction (160-Gbps full duplex) |
Performance | Hardware forwarding at 800Gbps or 595 mpps |
FCoE | FCoE supported up to 30m with Category 6a or 7 cables |
Cisco parent switch | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series |
Dimensions (H x W x D) | 4.37 x 43.94 x 44.96 cm |
Net Weight | 8.4 Kg (Systems are fully loaded with two power supplies and one fan tray.) |
Product Details

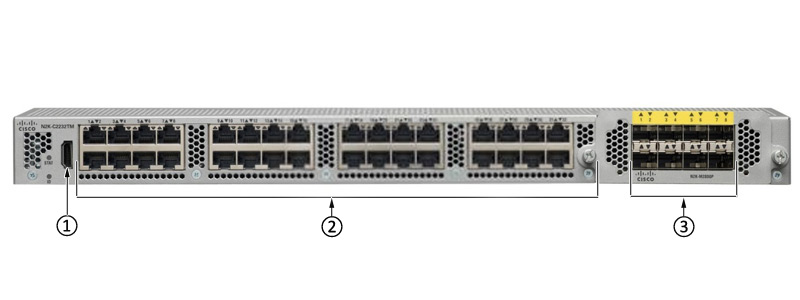

Figure 2 shows the front panel of the N2K-C2232TM-E.
Note:
① | 1 × Management/console HDMI port |
② | 32 × 1- /10-GBASE-T host-facing ports for RJ-45 connectors |
③ | 8 ×10-Gigabit Ethernet parent-switch facing fabric ports for SFP+ transceivers |

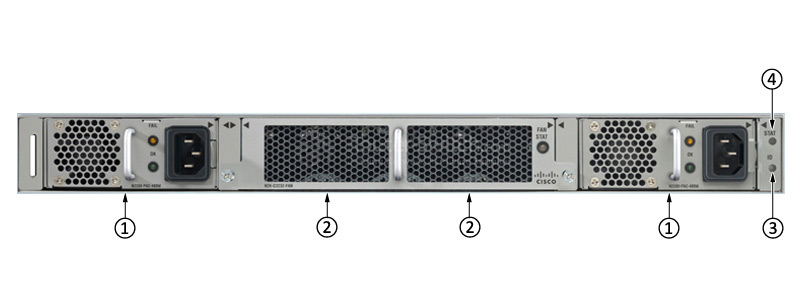

Figure 3 shows the back panel of the N2K-C2232TM-E.
Note:
① | Power supply modules (one or two, hot swappable) (AC power supply shown) |
② | Fan modules (two, hot swappable) |
③ | Status LED |
④ | ID LED |
The Accessories
Models | Description |
SFP-10G-SR | 10GBASE-SR SFP Module |
SFP-H10GB-CU1M | Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors SFP-H10GB-CU1M |
SFP-H10GB-CU5M | SFP-H10GB-CU5M,5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly |
Compare to Similar Items
Product Code | N2K-C2232TM-E | N2K-C2248TP-E |
Fabric extender host interfaces | 32 | 48 |
Fabric extender host interface type | 32 × 1/10GBASE-T ports: RJ‑45 connectors | 48 × 100BASE-T/1000BASE-T ports: RJ-45 connectors |
Fabric extender fabric interfaces | Uplink module: 8 x 10 Gigabit Ethernet SFP+ included | 4 × 10-Gigabit parent-switch facing ports for SFP+ transceivers |
Fabric speed | 80 Gbps in each direction (160-Gbps full duplex) | 40 Gbps in each direction (80 Gbps full duplex) |
Performance | Hardware forwarding at 800Gbps or 595 mpps | Hardware forwarding at 176 Gbps or 131 mpps |
Cisco parent switch | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series |
Summary Description
Cisco Nexus 2232TM-E, Full duplex
Need help with N2K-C2232TM-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
