N2K-C2232TF-E Overview
Nexus 2000 Series Chassis with Fabric Extender, Nexus 2232TM-E 10GBASE-T Fabric Extender, 2PS, 1 Fan Module, 32x1/10GBase-T + 8x10GE Module (includes 16 Fabric Extender Transceivers), choice of airflow and power supply N2K-C2232TF-E
Overview
N2K-C2232TF-E Overview
Cisco Nexus 2232TM-E, 10000 m, 10000 Mbit/s, 10,100,1000,10000 Mbit/s, Full, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, SFP+
N2K-C2232TF-E is a Cisco Nexus 2232TM-E Series 10GBASE-T Fabric Extender, offering 2 power supply, 1 Fan Modules, 32x1/10GBase-T + 8x10GE Module (includes 16 Fabric Extender Transceivers), and choice of airflow. Cisco Nexus 2000 Series Fabric Extenders comprise a category of data center products designed to simplify data center access architecture and operations. Nexus 2000 Series Fabric Extenders behave like remote line cards for a parent Cisco Nexus switch. The fabric extenders are essentially extensions of the parent Cisco Nexus switch fabric, with the fabric extenders and the parent switch together forming a distributed modular system. This architecture enables physical topologies with the flexibility and benefits of both top-of-rack (ToR) and end-of-row (EoR) deployments
Quick Specs

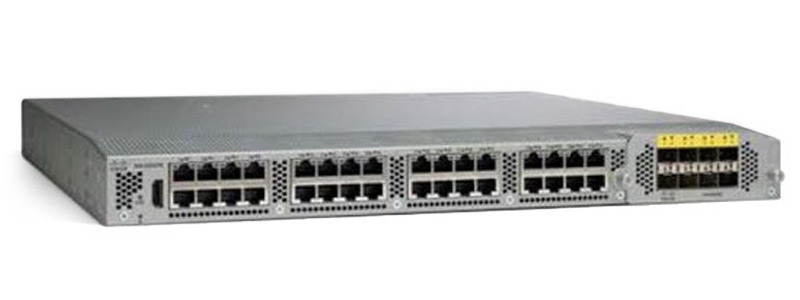

Figure 1 shows the appearance of the N2K-C2232TF-E.
Product Code | N2K-C2232TF-E |
Bundle | 16 × Fabric Extender Transceivers |
Fabric extender host interfaces | 32 |
Fabric extender host interface type | 32 × 1/10GBASE-T ports: RJ‑45 connectors |
Fabric extender fabric interfaces | Uplink module: 8 x 10 Gigabit Ethernet SFP+ included |
Fabric speed | 80 Gbps in each direction (160-Gbps full duplex) |
Performance | Hardware forwarding at 800Gbps or 595 mpps |
FCoE | FCoE supported up to 30m with Category 6a or 7 cables |
Cisco parent switch | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series |
Dimensions (H x W x D) | 4.37 x 43.94 x 44.96 cm |
Net Weight | 8.4 Kg (Systems are fully loaded with two power supplies and one fan tray.) |
Product Details

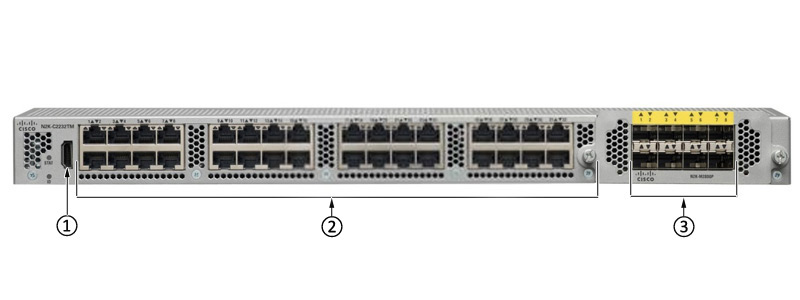

Figure 2 shows the front panel of the N2K-C2232TF-E.
Note:
① | 1 × Management/console HDMI port |
② | 32 × 1- /10-GBASE-T host-facing ports for RJ-45 connectors |
③ | 8 ×10-Gigabit Ethernet parent-switch facing fabric ports for SFP+ transceivers |

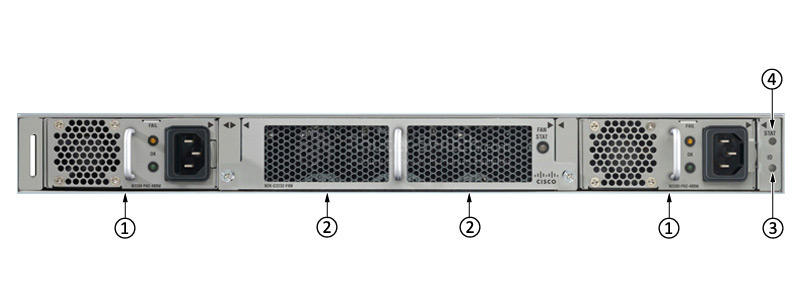

Figure 3 shows the back panel of the N2K-C2232TF-E.
Note:
① | Power supply modules (one or two, hot swappable) (AC power supply shown) |
② | Fan modules (two, hot swappable) |
③ | Status LED |
④ | ID LED |
The Accessories
Models | Description |
SFP-10G-SR | 10GBASE-SR SFP Module |
SFP-H10GB-CU1M | Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors SFP-H10GB-CU1M |
SFP-H10GB-CU5M | SFP-H10GB-CU5M,5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly |
Compare to Similar Items
Product Code | N2K-C2232TM-E | N2K-C2232TF-E |
Bundle | N/A | 16 × Fabric Extender Transceivers |
Fabric extender host interfaces | 32 | 32 |
Fabric extender host interface type | 32 × 1/10GBASE-T ports: RJ‑45 connectors | 32 × 1/10GBASE-T ports: RJ‑45 connectors |
Fabric extender fabric interfaces | Uplink module: 8 x 10 Gigabit Ethernet SFP+ included | Uplink module: 8 x 10 Gigabit Ethernet SFP+ included |
Fabric speed | 80 Gbps in each direction (160-Gbps full duplex) | 80 Gbps in each direction (160-Gbps full duplex) |
Performance | Hardware forwarding at 800Gbps or 595 mpps | Hardware forwarding at 800Gbps or 595 mpps |
Cisco parent switch | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series | Cisco Nexus 5000 Series Cisco Nexus 6000 Series Cisco Nexus 7000 Series Cisco Nexus 9000 Series |
Summary Description
Cisco Nexus 2232TM-E, 10000 m, 10000 Mbit/s, 10,100,1000,10000 Mbit/s, Full, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, SFP+
Need help with N2K-C2232TF-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
N2K-C2232TF-E Specification
N2K-C2232TF-E Specification | |
Type | Cisco Nexus 2232TM-E with 32x1/10GBase-T + 8 x 10GE Module (includes 16 Fabric Extender Transceivers) |
Fabric extender host interfaces |
|
Fabric extender host interface type |
|
Fabric extender fabric interfaces |
|
Fabric extender fabric interface type |
|
Fabric speed |
|
Oversubscription |
|
Performance |
|
FCoE |
|
Cisco parent switch |
|
Minimum software |
|
Dimensions (H x W x D) |
|
Weight |
|
Indicator and port specification |
|
Environment |
|
Power supply |
|
Fan tray |
|
Typical input operating power |
|
Input current |
Note: Input current listed for 110V; divide by 2 for 220V
|
Output current |
|
Heat dissipation |
|
Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. |
Safety |
|
EMC: Emissions |
|
EMC: Immunity |
|
RoHS | The Cisco Nexus 2148T is RoHS-5 compliant, and the Cisco Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant. |
Network Equipment Building Standards (NEBS) | The Cisco Nexus 2248TP, 2248TP-E, and 2232PP meet NEBS level-3 standards (hardware revision 3). |
Layer 2 features |
|
Enhanced Ethernet |
|
Quality of service (QoS) |
|
High availability |
|
Security |
|
Management |
|
Configuration MIBs |
|
Monitoring MIBs |
|
Industry standards |
|
