JX928A Overview
Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller JX928A
Overview
JX928A Overview
Aruba 7008 (US), 2000 Mbit/s, 1024 user(s), IEEE 802.11ad, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at, 10,100,1000 Mbit/s, 3DES, AES, Wired
JX928A is the Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller. Aruba 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying and managing the network.
Quick Spec
SKU | JX928A |
Product Model | Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller |
Maximum campus AP licenses | 16 |
Maximum remote AP licenses | 16 |
Maximum concurrent users/devices | 1,024 |
Maximum VLANs | 4,094 |
Auto-negotiating 10/100/1000BASE-T | 8 |
Dimension (H × W × D) | 4.2 cm x 20.32 cm x 20.32 cm (1.65” x 8.0” x 8.0”) |
Weight | 1.0 kg (2.2 lbs) |
Product Details

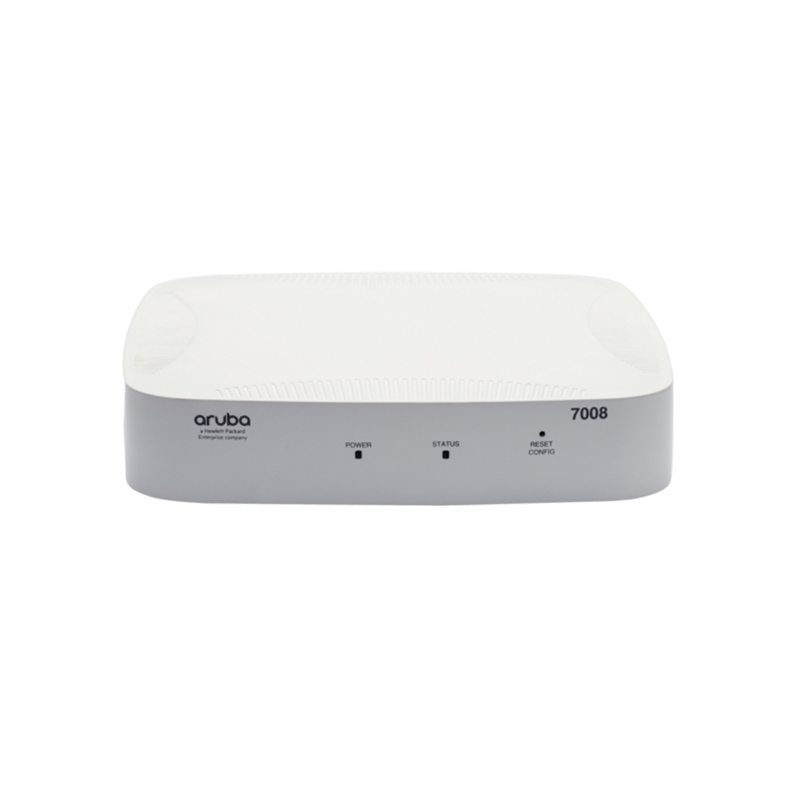

Figure 1 shows the front panel of Aruba 7008 controller.
Note:
Indicators: ① POWER ② STATUS ③ RESET CONFIG
Figure 2 shows the back panel of Aruba 7008 controller.
Note:
① USB ② Console Port ③ 8 x Auto-negotiating 10/100/1000BASE-T
Model | 7005 | 7008 | 7010 | 7024 | 7030 |
Maximum campus AP licenses | 16 | 16 | 32 | 32 | 64 |
Maximum remote AP licenses | 16 | 16 | 32 | 32 | 64 |
Maximum concurrent users/devices | 1,024 | 1,024 | 2,048 | 2,048 | 4,094 |
Maximum VLANs | 4,094 | 4,094 | 4,094 | 4,094 | 4,094 |
Active firewall sessions | 16,384 | 16,384 | 32,768 | 32,768 | 65,536 |
Concurrent GRE tunnels | 256 | 256 | 512 | 512 | 1,024 |
Concurrent IPsec sessions | 512 | 512 | 1,024 | 1,024 | 2,048 |
Mobility Access Switch tunneled-node ports | 512 | 512 | 1,024 | 1,024 | 2,048 |
Firewall throughput | 2 Gbps | 2 Gbps | 4 Gbps | 4 Gbps | 8 Gbps |
Encrypted throughput (3DES, AES-CBC) | 1.2 Gbps | 1.2 Gbps | 2.4 Gbps | 2.4 Gbps | 2.4 Gbps |
Encrypted throughput (AES-CCM) | 1.6 Gbps | 1.6 Gbps | 3.4 Gbps | 3.4 Gbps | 4 Gbps |
Note: To order Aruba Access Points, please visit HPE Aruba 100 Series Access Points, HPE Aruba 200 Series Access Points, HPE Aruba 300 Series Access Points.
Compare to Similar Item
SKU | JX928A | |
Product Model | Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller | Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller |
Maximum campus AP licenses | 16 | 16 |
Maximum remote AP licenses | 16 | 16 |
Maximum concurrent users/devices | 1,024 | 1,024 |
Maximum VLANs | 4,094 | 4,094 |
Auto-negotiating 10/100/1000BASE-T | 4 | 8 |
Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP & 1K Client Controller
- Firewall throughput: 2000 Mbit/s
- Number of LAN Access Points (max): 16
- Number of Remote Access Points (max): 16
- 1024 user(s)
- Ethernet LAN IEEE 802.11ad, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at VLAN support
- Wired RJ-45/micro-USB
- Power over Ethernet (PoE)
Summary Description
Aruba 7008 (US), 2000 Mbit/s, 1024 user(s), IEEE 802.11ad, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at, 10,100,1000 Mbit/s, 3DES, AES, Wired
Need help with JX928A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JX928A Specification
JX928A Specification | |
Product Model | Aruba 7008 (US) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller |
Maximum campus AP licenses | 16 |
Maximum remote AP licenses | 16 |
Maximum concurrent users/devices | 1,024 |
Maximum VLANs | 4,094 |
Active firewall sessions | 16,384 |
Concurrent GRE tunnels | 256 |
Concurrent IPsec sessions | 512 |
Mobility Access Switch tunneled-node ports | 512 |
Firewall throughput | 2 Gbps |
Encrypted throughput (3DES, AES-CBC) | 1.2 Gbps |
Encrypted throughput (AES-CCM) | 1.6 Gbps |
Form factor/footprint | Compact |
Auto-negotiating 10/100/1000BASE-T | 8 |
Gigabit Ethernet ports (GBIC or SFP) | N/A |
USB 2.0 | Yes |
Management/status LEDs | Yes (2) |
LINK/ACT and status LEDs | No |
LCD panel and navigation buttons | No |
Console port | Yes (micro USB/RJ-45) |
Out-of-band management port | No |
PoE Role/Mode | Power Source Equipment (PSE) |
PoE In or Out | Out |
Number of PoE+ capable Ports | 8 |
Max concurrent of PoE Ports | 8 |
Max concurrent PoE+ Ports | 3 |
PoE Power Budget | 100W |
Dimension (H × W × D) | 4.2 cm x 20.32 cm x 20.32 cm (1.65” x 8.0” x 8.0”) |
Weight | 1.0 kg (2.2 lbs) |
MTBF (hours, @ 25C) | 300,000 |
Operating temperature | 0° C to 40° C |
Storage temperature | -40° C to 70° C |
Humidity/storage humidity | 10% to 95%, |
NC Operating altitude | 10,000 feet |
Acoustic noise | 0 dBA (fanless) |
Maximum power consumption | 126W with PoE (26W without PoE) |
Safety certifications | UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition NOM (obtained by partners and distributors) |
Electromagnetic emissions certifications | FCC Part 15 Class B CE AS/NZS CISPR22 Class B CISPR22 Class A (7010, 7024, 7030), Class B (7005) EN55022 Class A (7010, 7024, 7030), Class B (7005) ICES-003 Class A (7010, 7024, 7030), Class B (7005) VCCI Class A (7010, 7024, 7030), Class B (7005) EN61000-3-2 EN61000-3-3 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548 KN22 Class B KCC CNS13438 Class B EN55024/CISPR24 KN24 Industry Canada Class B CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC |
Telco | Common Language Equipment Identifier (CLEI) Code |
Regulatory SKU information | ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030) |
Minimum ArubaOS Release | 7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0 |
Resources
Frequently Asked Questions
What is the primary capacity of the Aruba 7008 (JX928A) controller regarding AP and client management? +
The Aruba 7008 controller is specifically engineered for branch office deployments, supporting up to 16 managed Aruba Access Points and a maximum of 1,000 concurrent client sessions. This makes it an ideal solution for small-to-medium enterprise sites that require robust, centralized management of wireless traffic without needing high-density data center-grade hardware.
Does the JX928A model include integrated Power over Ethernet capabilities for connected devices? +
Yes, the Aruba 7008 JX928A features eight 10/100/1000BASE-T ports that provide a total of 100W of PoE+ power. This integrated PoE functionality is highly efficient for powering your access points directly from the controller, simplifying your deployment by reducing the need for additional external switches or separate power injectors at the network edge.
What deployment scenarios are most suitable for the Aruba 7008 controller? +
This controller is purpose-built for branch office and retail environments. Its compact form factor combined with the ability to manage both APs and local wired devices makes it a versatile choice for remote locations. It excels in scenarios where you need to aggregate wired and wireless traffic while maintaining consistent policy enforcement and security across the branch network.
How does the JX928A manage security and policy enforcement for connected users? +
The 7008 utilizes Aruba's advanced OS to enforce Role-Based Access Control (RBAC). It applies consistent security policies to users regardless of their connection method—whether wired or wireless. This ensures that your network security posture remains uniform, allowing administrators to restrict or grant access based on user identity, device type, and location across the branch infrastructure.
Is the Aruba 7008 (JX928A) compatible with existing Aruba AP infrastructure? +
The JX928A is designed for seamless integration with a wide range of Aruba 802.11ac and 802.11ax Access Points. Because it acts as the centralized point of management for your WLAN, it maintains backward compatibility with legacy Aruba APs while supporting newer models. Always verify your current firmware version to ensure optimal feature parity across your specific ecosystem of Aruba devices.
What management interfaces are available for the Aruba 7008 controller? +
The controller offers comprehensive management options, including a secure WebUI, a command-line interface (CLI) for granular configuration, and integration with Aruba AirWave or Aruba Central for centralized network visibility. These interfaces allow IT teams to monitor system health, troubleshoot client connectivity, and push configuration updates across multiple 7008 units from a single management plane.
How does the 100W power budget affect the functionality of the JX928A ports? +
The 100W power budget is shared across the eight Gigabit Ethernet ports. This is sufficient to support a standard deployment of high-performance APs. When planning your installation, ensure the total power draw of all connected devices remains within this budget to maintain reliable operation. You can monitor power consumption per port through the controller’s dashboard to optimize resource distribution.
What is the physical mounting capability of the Aruba 7008 unit? +
The Aruba 7008 features a compact design suitable for desktop deployment or rack mounting in standard telecommunications closets. Its physical footprint is minimized for small spaces, which is critical for branch offices where dedicated server room space may be limited. Mounting brackets are generally included, allowing for straightforward installation in standard 19-inch equipment racks.
