Mfr.part#:	AIR-AP1562D-E-K9

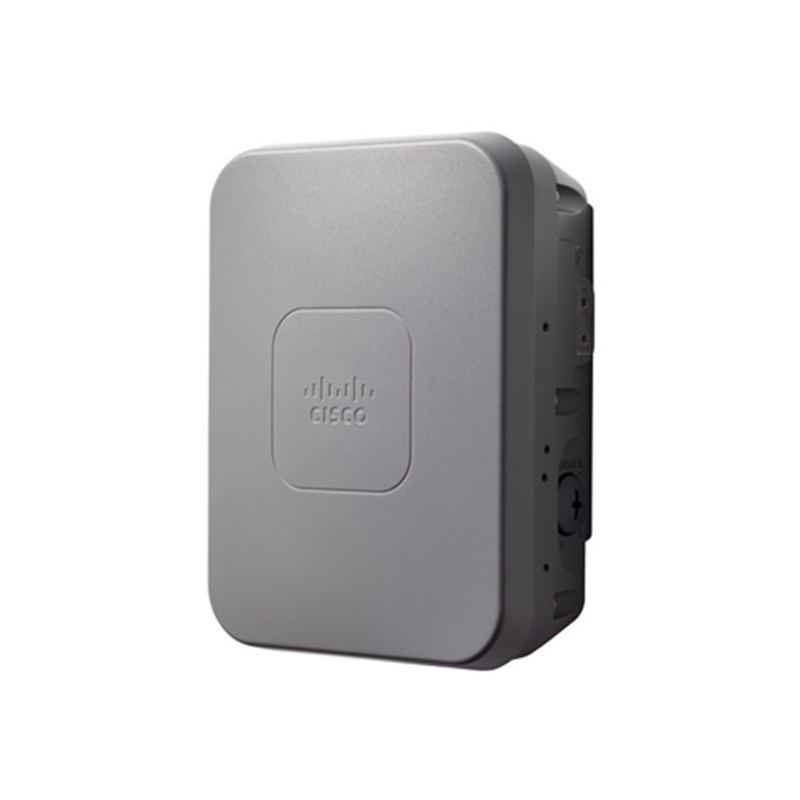

Name:	AIR-AP1562D-E-K9 - Cisco Aironet 1562D Outdoor Access Point
Detail:	802.11ac Wave 2 Low-Profile Outdoor AP, Directional Antenna, E Regulatory Domain AIR-AP1562D-E-K9
Availability:	In Stock
Condition:	New
GTIN:	0882658905162 0882658905162 882658905162

AIR-AP1562D-E-K9

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

AIR-AP1562D-E-K9 Overview

Cisco Aironet 1562D-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2 (AIR-AP1562D-E-K9). Maximum data transfer rate: 1300 Mbit/s, Wi-Fi data rate (max): 1300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA, WPA2, VPN support: IPsec, L2TP. WAN connection: Ethernet (RJ-45). AC input voltage: 44 - 57 V, Power consumption (typical): 25 W, Power plug type: Type C. Placement: Wall, Product colour: Grey, International Protection (IP) code: IP67

Part Number	AIR-AP1562D-E-K9
Description	802.11ac Wave 2 Low-Profile Outdoor AP, Directional Antenna, E Regulatory Domain
Features	2 x 2 MIMO with two spatial streams Multi- and single-user MIMO Maximal ratio combining (MRC) 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic-shift-diversity (CSD) support
Interfaces	WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in SFP port (fiber or electrical) Management console port (RJ-45) Multicolor LED DC power input Reset button
Dimensions(L x W x H)	9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm)
Weight	5.7 lb (2.6 kg)

Aironet 1562D-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2 (AIR-AP1562D-E-K9)

MU-MIMO: 802.11ac Wave 2 with 3x3 Multiple Input Multiple-Output (MIMO) technology with up to three spatial streams, offering 1.3-Gbps rates for high capacity and reliability

HDX HIGH DENSITY EXPERIENCE: Award-winning CleanAir to mitigate Wi-Fi and non-Wi-Fi interference, ClientLink to conserve battery life on mobile devices

RADIO RESOURCE MANAGEMENT: Cisco's Radio Resource Management (abbreviated RRM) allows Cisco's Unified WLAN Architecture to continuously analyse the existing RF environments, automatically adjusting each AP's power and channel configurations to help mitigate things such as co-channel interference and signal coverage problems. RRM reduces the need to perform exhaustive site surveys, increases system capacity and provides automated self-healing functionality to compensate for RF dead zones and AP failures

OPTIMISE RADIO COVERAGE: Cisco Flexible Antenna Port technology uses software configurable for either single or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimise radio coverage

PEACE OF MIND: 1-year limited hardware warranty

2.4 GHz

5 GHz

Maximum data transfer rate: 1300 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

802.1x RADIUS, AES, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA, WPA2

Power over Ethernet (PoE)

Internal Integrated antenna

Summary Description

Cisco Aironet 1562D-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2 (AIR-AP1562D-E-K9), 1300 Mbit/s, 1300 Mbit/s, 10,100,1000 Mbit/s, 2.412 - 2.472, 5.5 - 5.58, 5.66 - 5.7 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 8

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco AIR-AP1562D-E-K9?

Click hereto find the lowest discounted price for AIR-AP1562D-E-K9.

Explore even more affordable prices for Outdoor Access Points and Cisco products.

specifications

Specification

AIR-AP1562D-E-K9 Specification

AIR-AP1562D-E-K9 Specification
General
Device Type	Wireless access point
Ruggedized Design	Outdoor
Width	6.7 in
Depth	4.3 in
Height	9 in
Weight	5.73 lbs
Networking
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	1.3 Gbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2
Network / Transport Protocol	L2TP, IPSec
Frequency Band	2.4 GHz, 5 GHz
Features	Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, Cisco Flexible Antenna Port technology, beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, High Density Experience (HDX)
Encryption Algorithm	LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method	X.509 certificates, Extensible Authentication Protocol (EAP)
Compliant Standards	IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Antenna
Antenna	Internal
Expansion / Connectivity
Interfaces	1 x 1000Base-T (PoE) - RJ-45 (WAN) ¦ 1 x - SFP (mini-GBIC) (WAN) ¦ 1 x console - RJ-45
Miscellaneous
Compliant Standards	EN 60950, ICES-003, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, X.509, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301489-17, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893
Power
Power Over Ethernet (PoE) Supported	PoE+
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	149 °F
